Dell P28E - Page 20

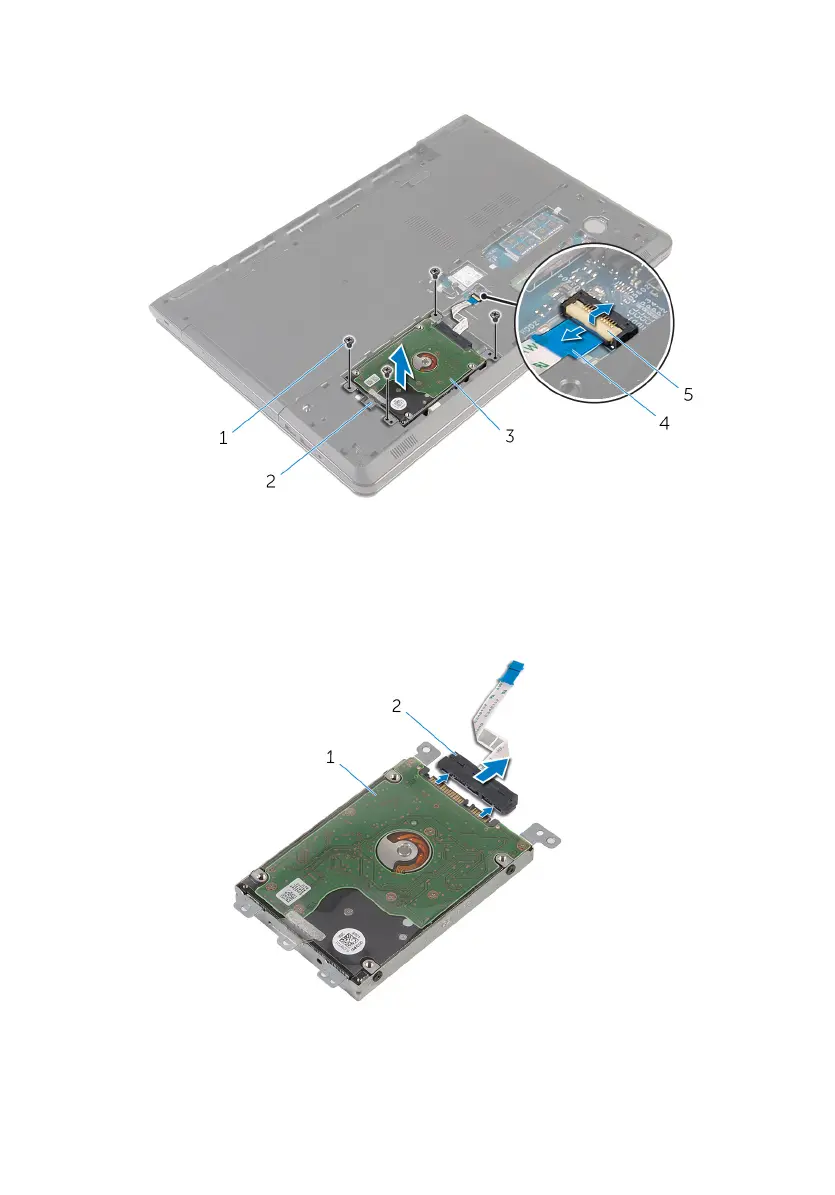

3 Using the pull tab, lift the hard-drive assembly out of the computer base.
1 screws (4) 2 pull tab
3 hard-drive assembly 4 hard-drive cable
5 latch
4 Disconnect the interposer from the hard drive.
1 hard-drive assembly 2 interposer
20
