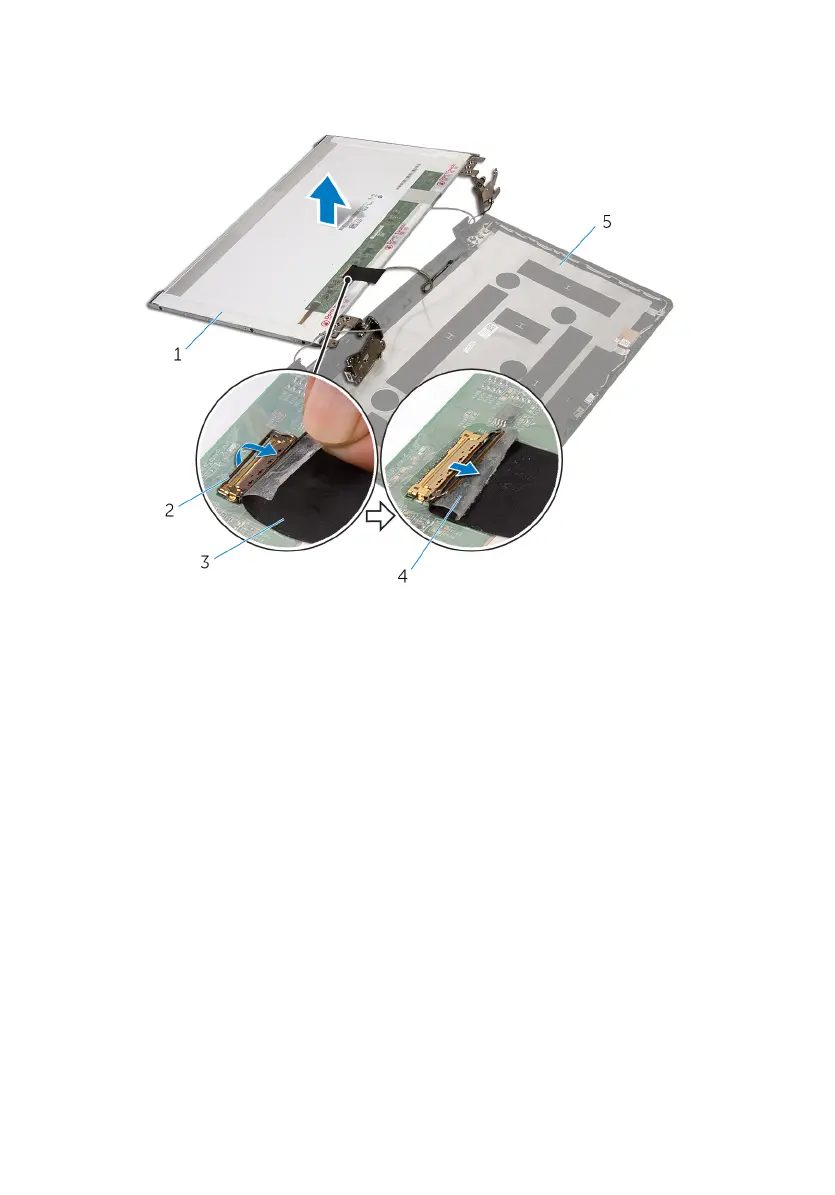

3 Gently peel the display cable, then lift the latch and disconnect the
display cable from the display-cable connector.
1 display panel 2 latch
3 display cable 4 tape
5 display back-cover
4 Lift the display panel off the display back-cover.
90
