Dell P30E - Page 19

To Next Page

To Previous Page

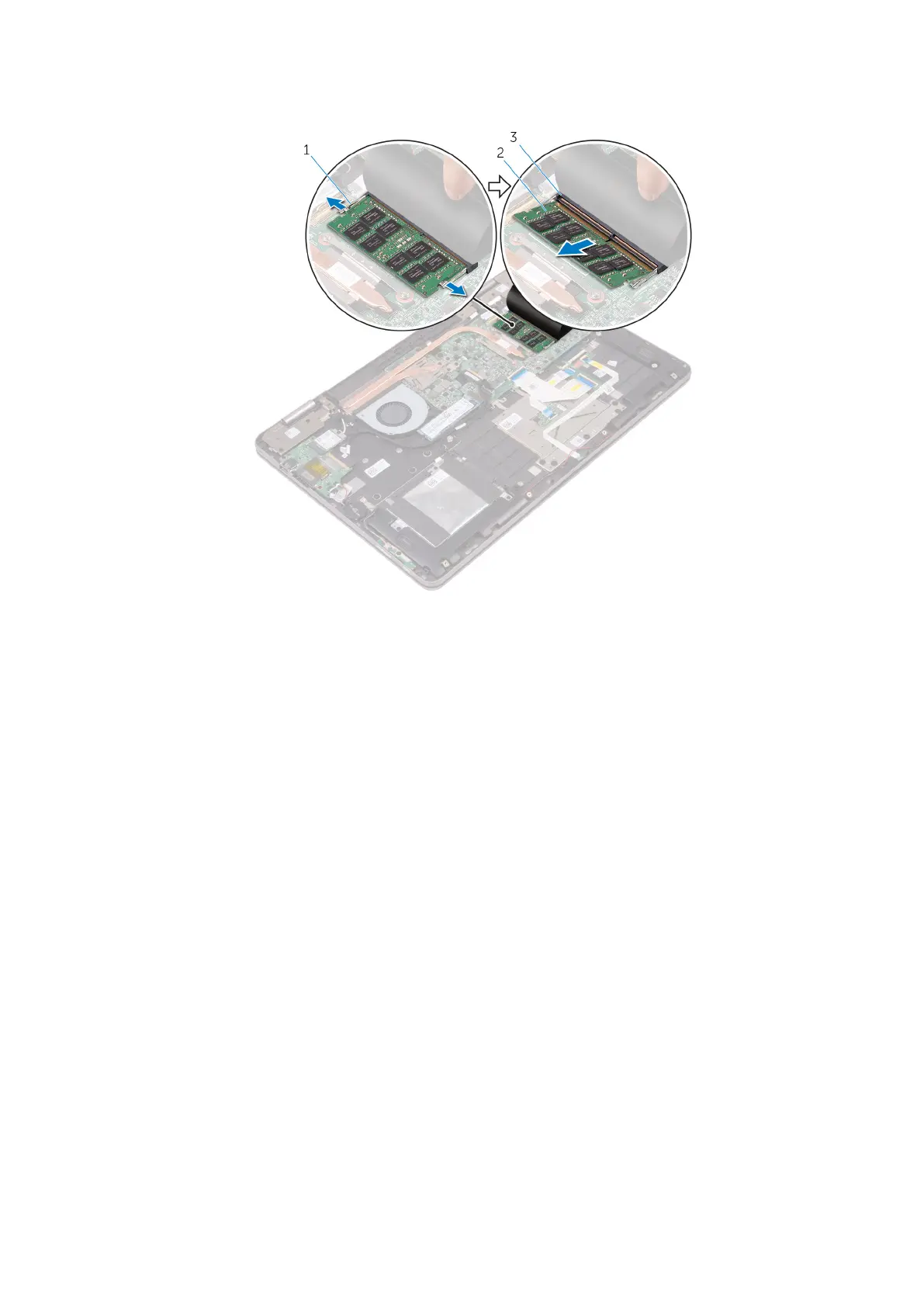

3. Slide and remove the memory module from the memory-module slot.

Figure 5. Removing the memory module

a. securing clips (2)

b. memory module

c. memory-module slot

Removing the memory modules
