Dell P30E - Removing the Speakers

Removing the speakers
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Topics:
• Prerequisites
• Procedure
Prerequisites
1. Remove the base cover.
2. Remove the battery.
Procedure
1. Disconnect the speaker cable from the system board.
2. Remove the speaker cable from the routing guides on the palm-rest assembly.
3. Remove the speakers from the alignment posts and lift the speakers off the palm-rest assembly.

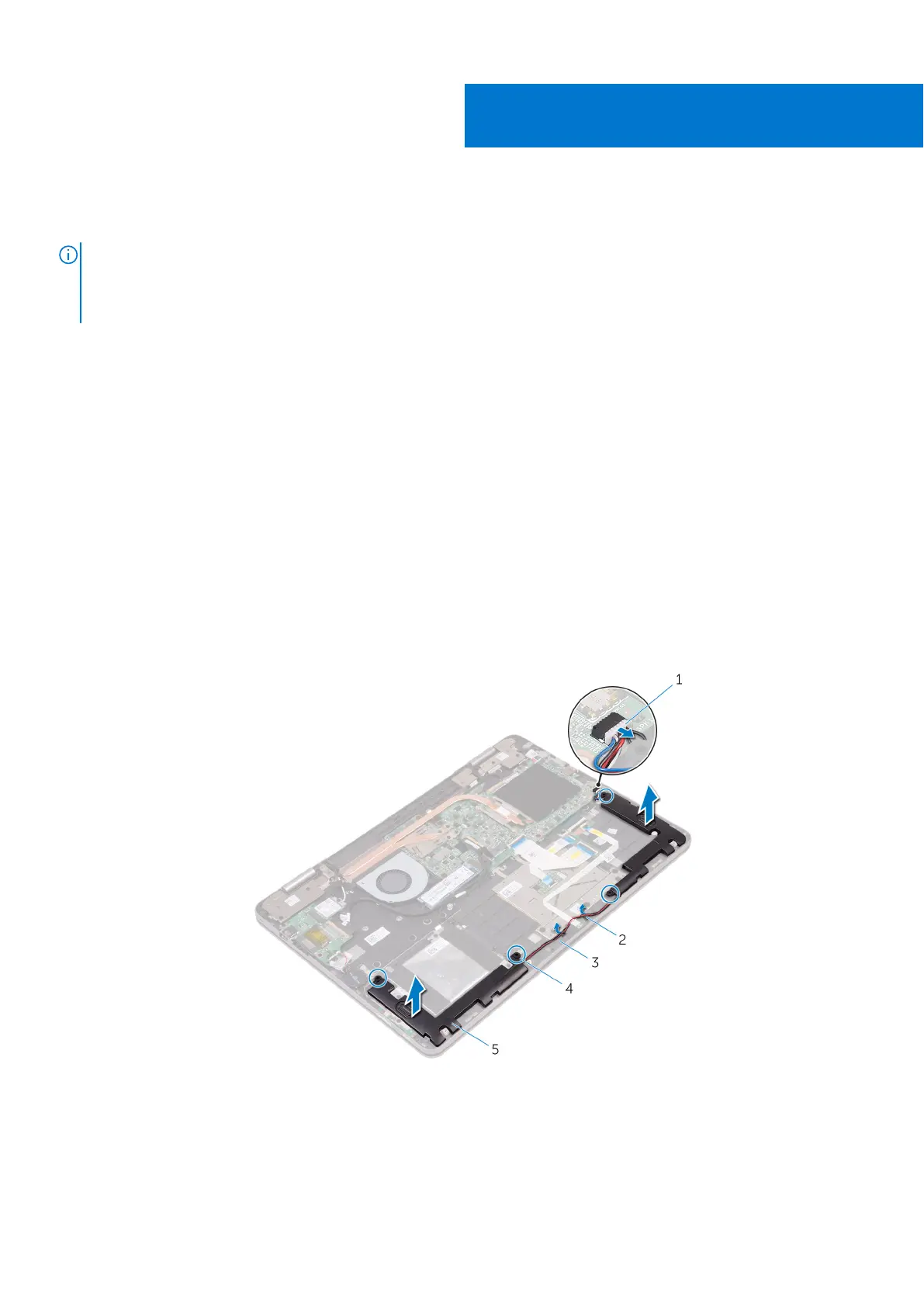

Figure 15. Removing the speakers
1.
speaker cable 2. routing guides (2)
3. palm-rest assembly 4. alignment posts (4)
5. speakers (2)
