Dell P30E - Post-Requisites

To Next Page

To Previous Page

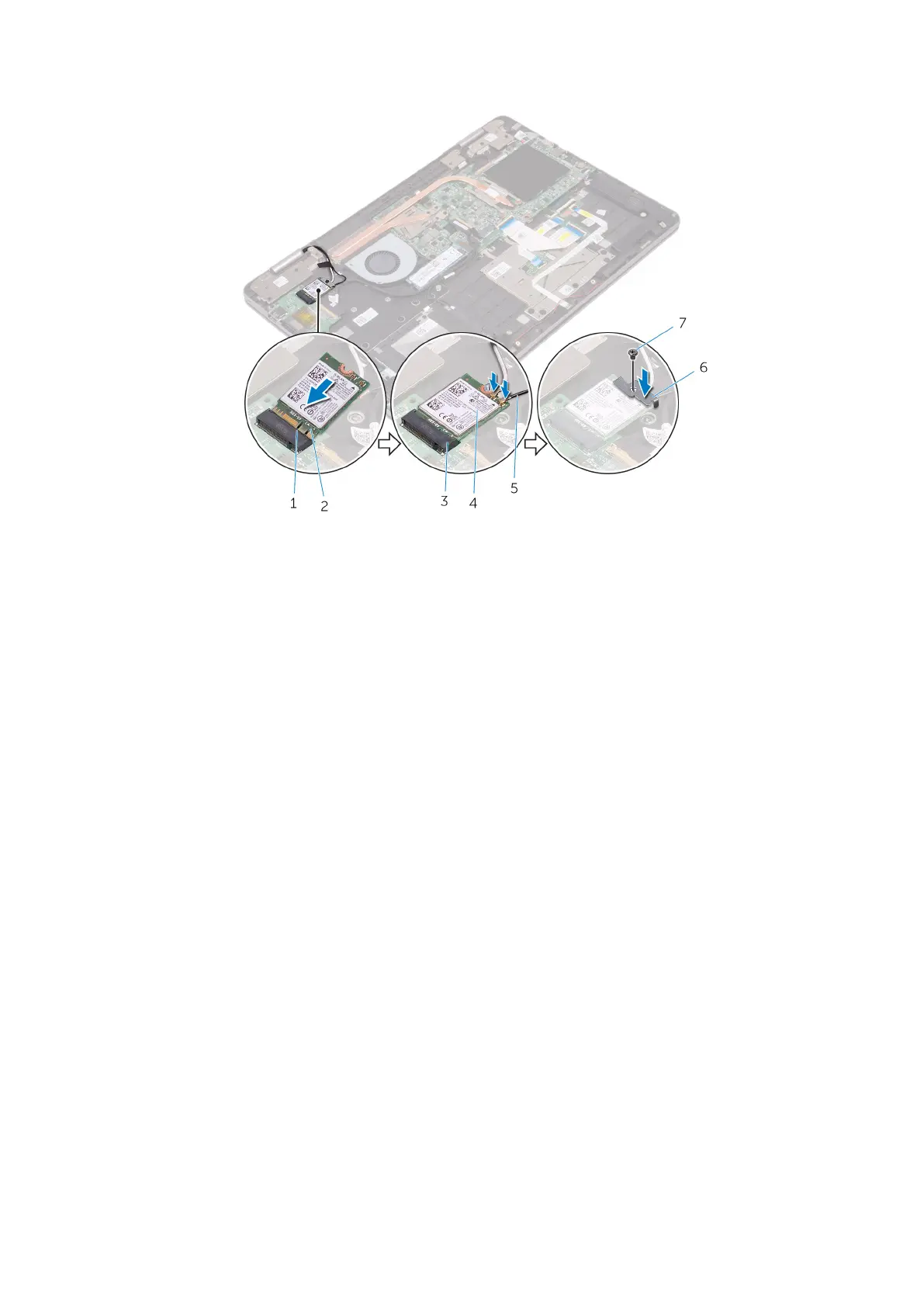

Figure 14. Replacing the wireless card

tab 2. notch

3. wireless-card slot 4. wireless card

5. antenna cables (2) 6. wireless-card bracket

7. screw

Post-requisites

1. Replace the battery.

2. Replace the base cover.

Replacing the wireless card
