5. pull tab
4. Disconnect the interposer from the hard-drive assembly.

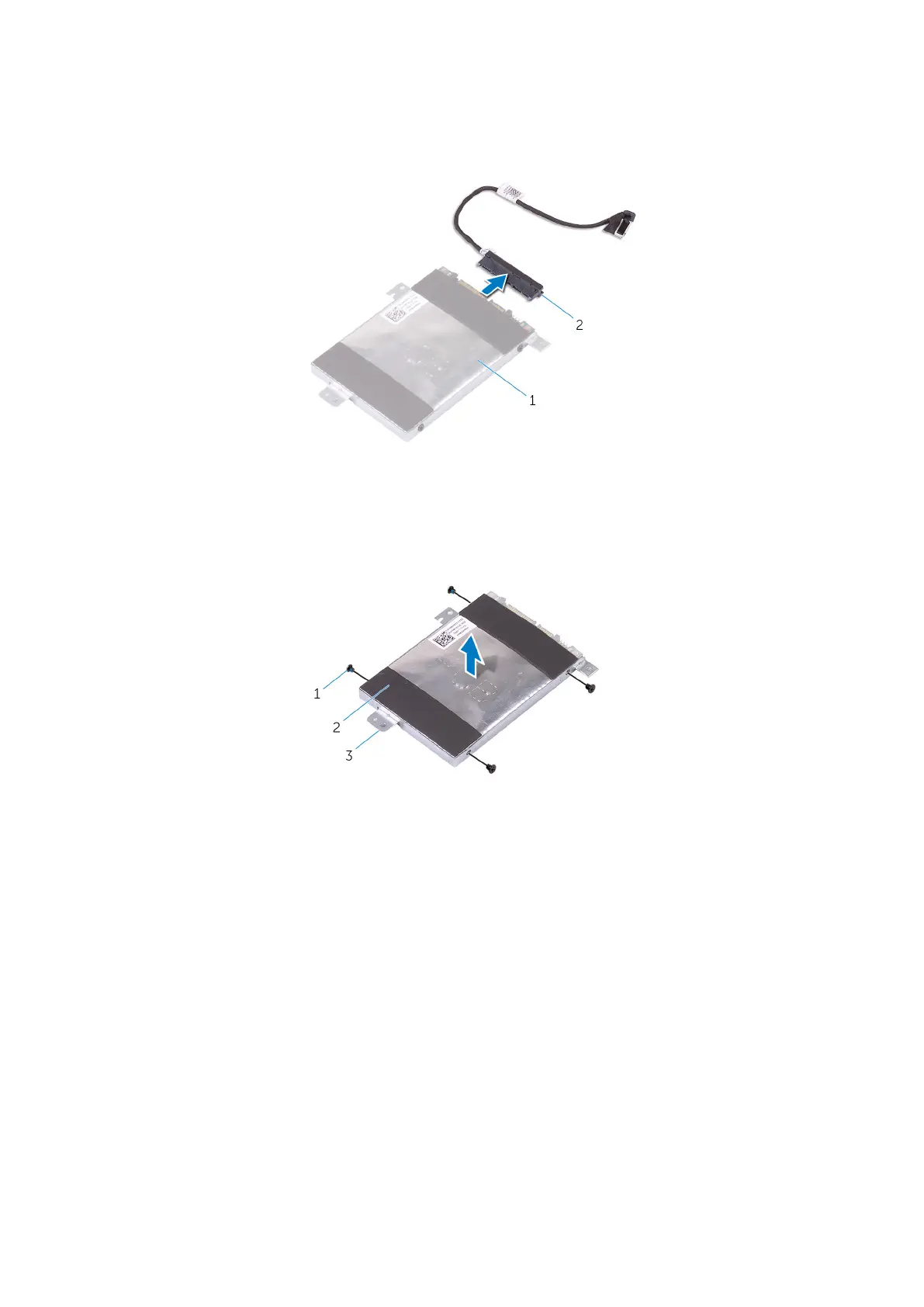

Figure 10. Removing the interposer
a. hard-drive assembly
b. interposer
5. Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
6. Lift the hard-drive bracket off the hard drive.
Figure 11. Removing the hard-drive bracket
a. screws (4)
b. hard drive
c. hard-drive bracket
Removing the hard drive
