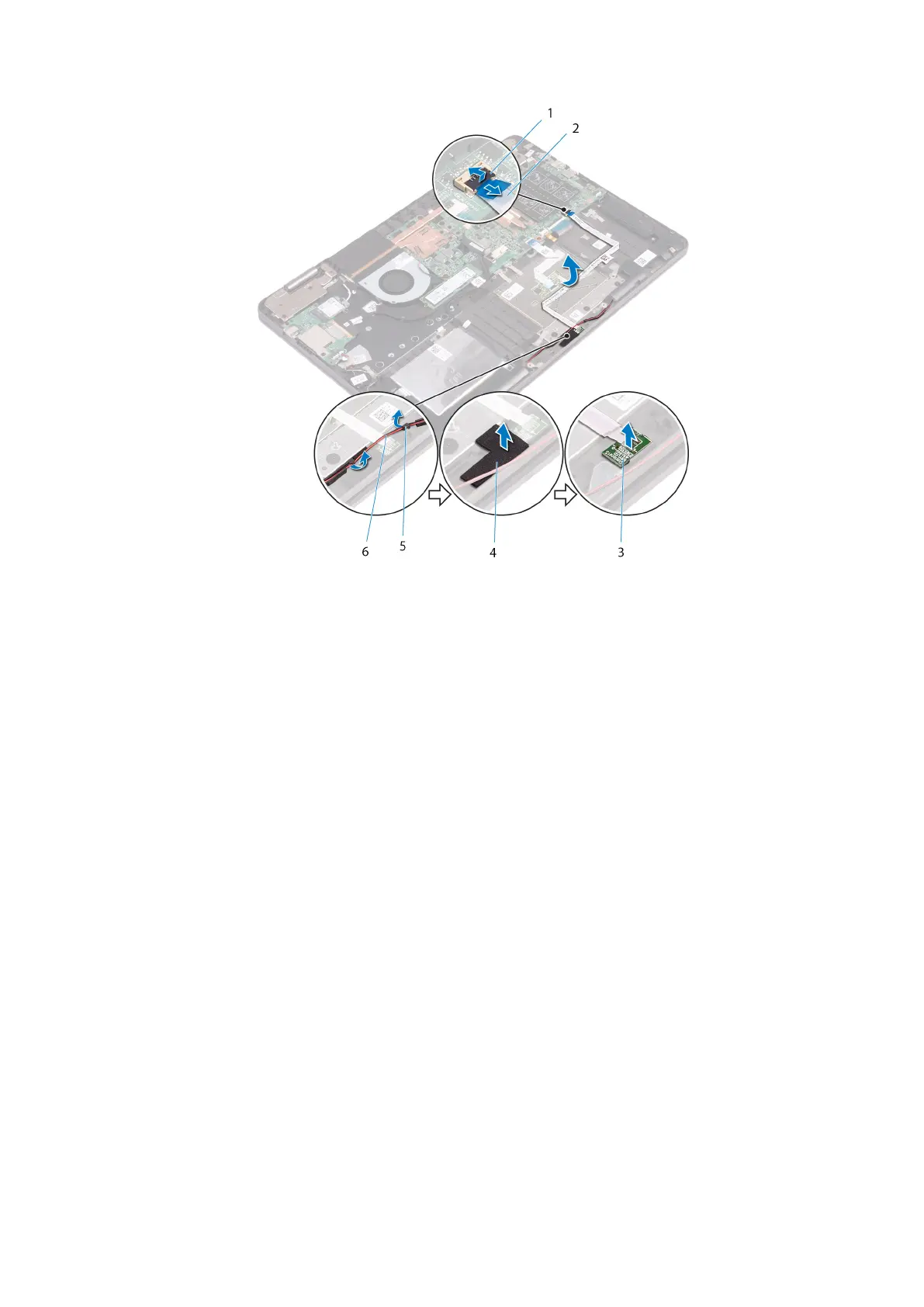

Figure 16. Removing the status-light board

latch 2. status-light board cable

3. status-light board 4. foam

5. routing guides (2) 6. speaker cable

38 Removing the status-light board
