6. Lift the touchpad off the palm-rest assembly.

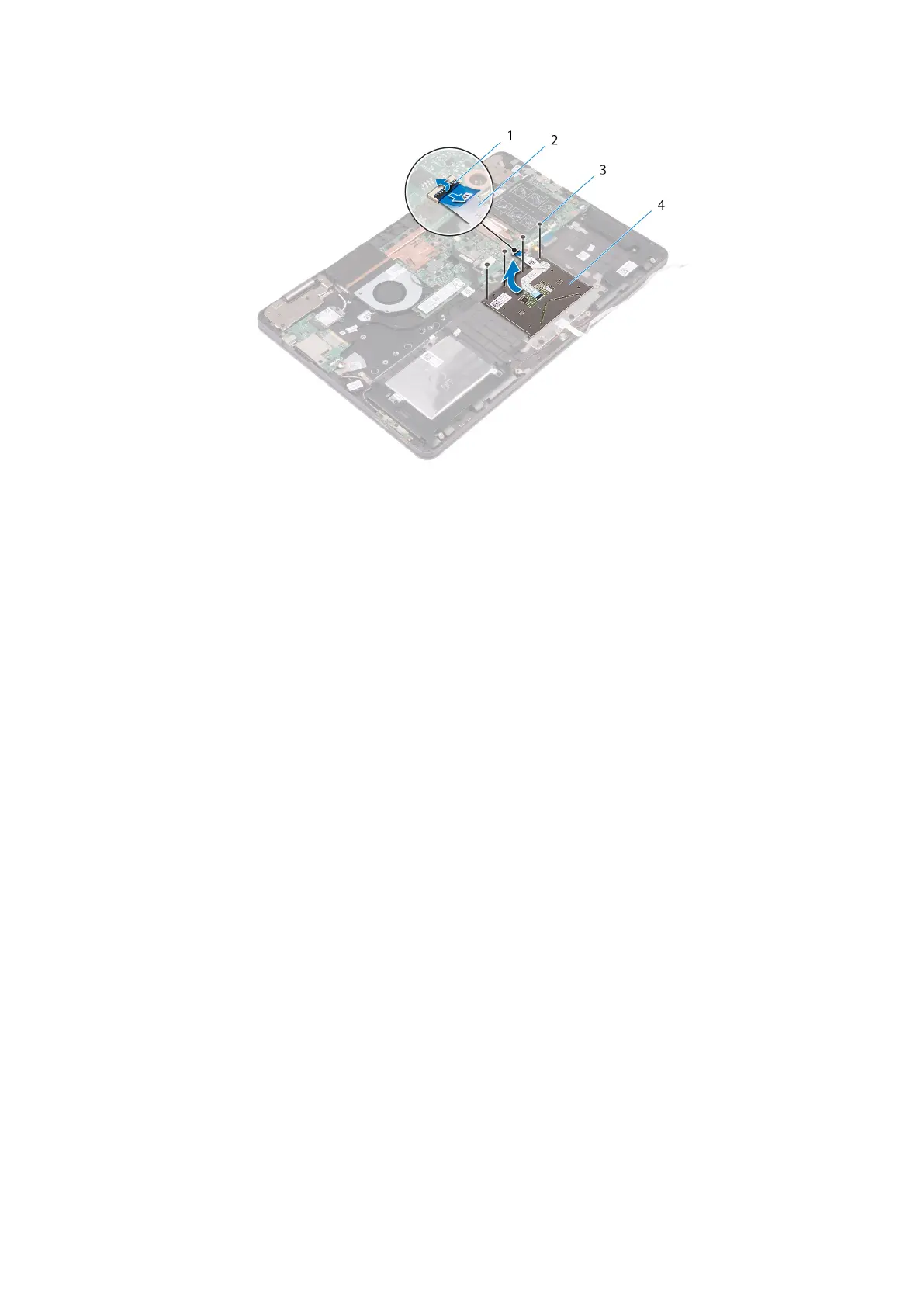

Figure 18. Removing the touchpad

1. latch 2. touch-pad cable

3. screws (4) 4. touchpad

Removing the touchpad 41
