4. Lift the graphics daughter-board off the palm-rest assembly.

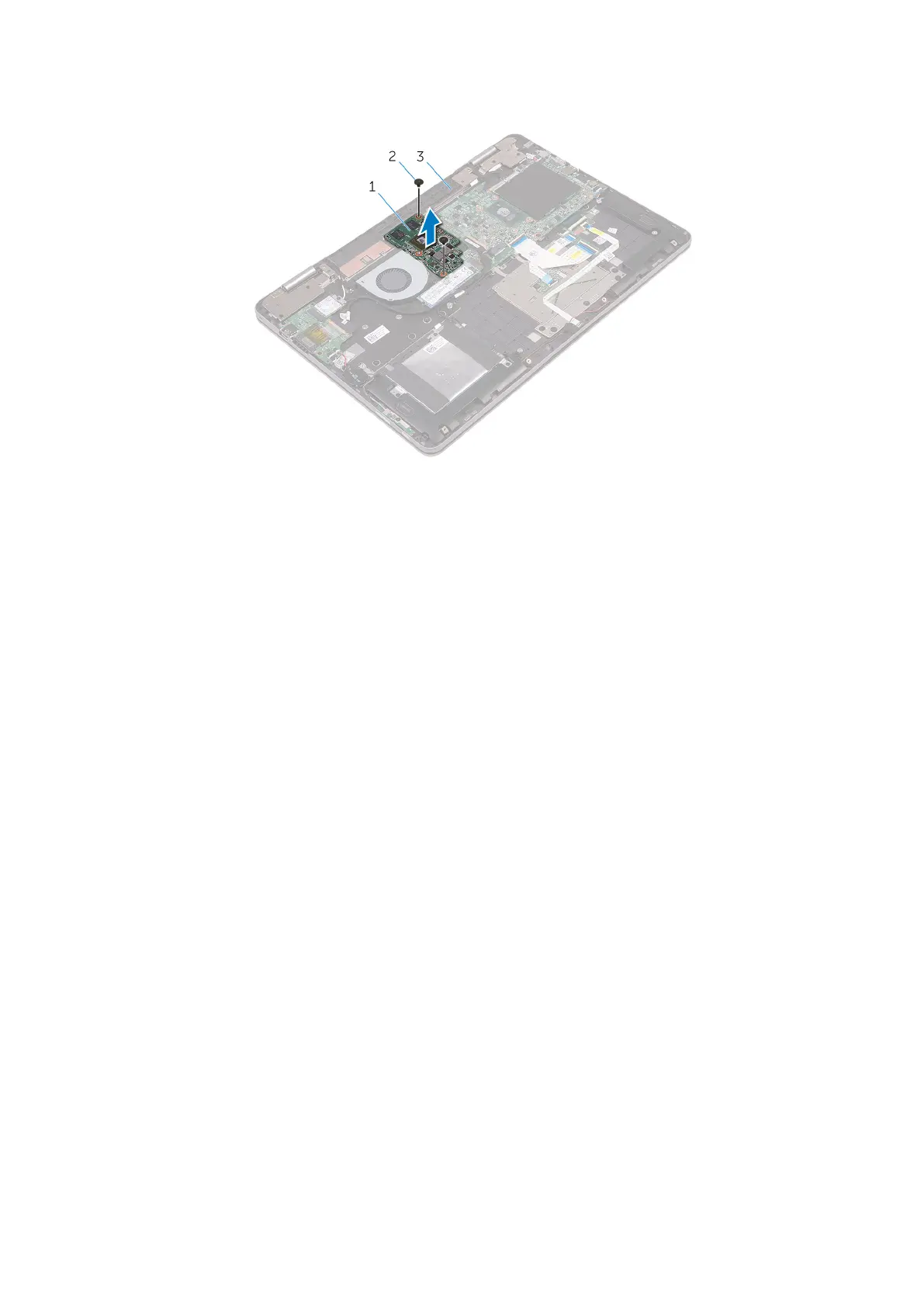

Figure 24. Removing the graphics daughter-board

a. graphics daughter-board

b. screws (2)

c. palm-rest assembly

Removing the graphics daughter-board
