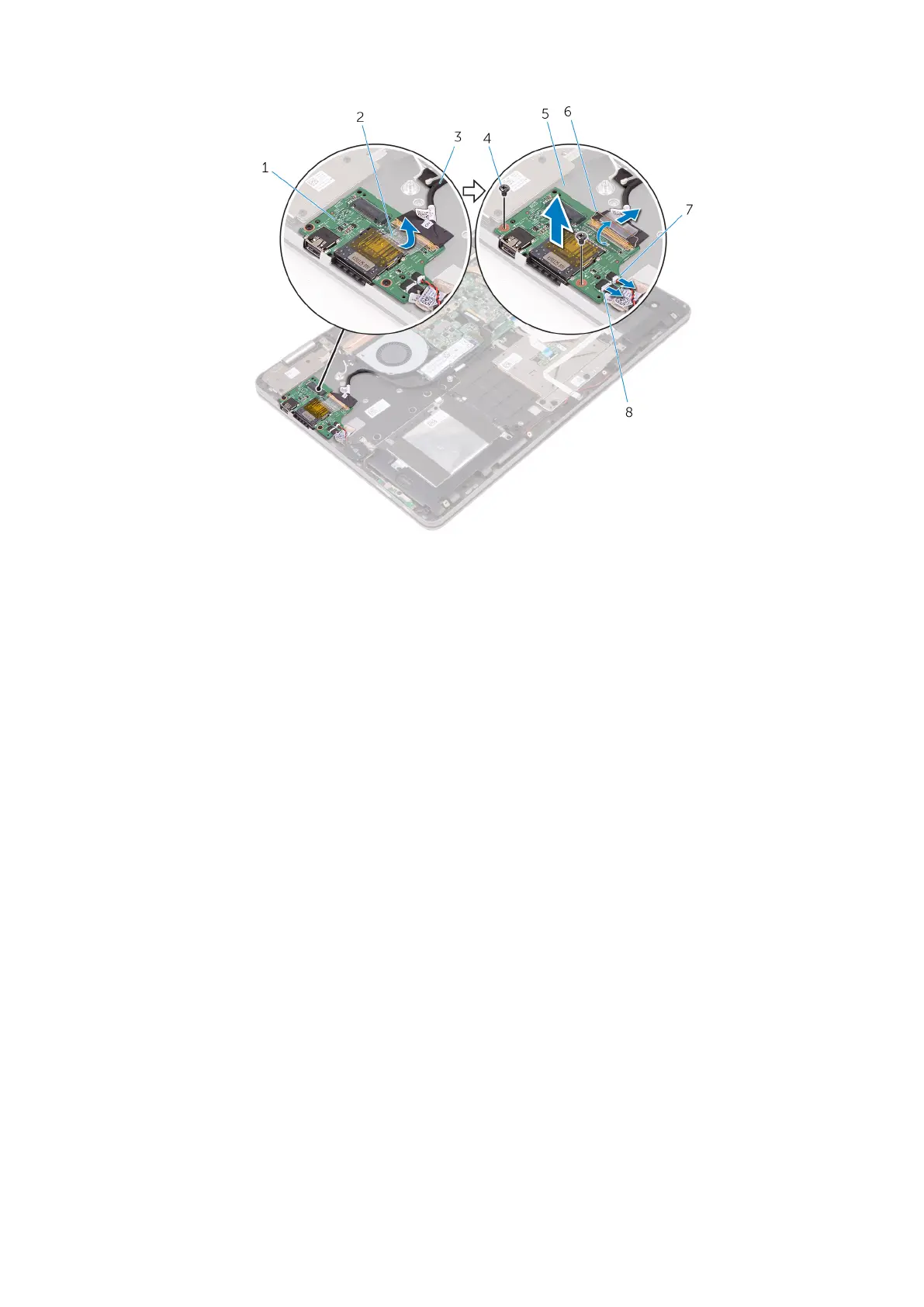

Figure 25. Removing the I/O board

I/O board 2. tape

3. I/O-board cable 4. screw

5. palm-rest assembly 6. latch

7. coin-cell battery cable 8. power and volume-buttons board cable

56 Removing the I/O board
