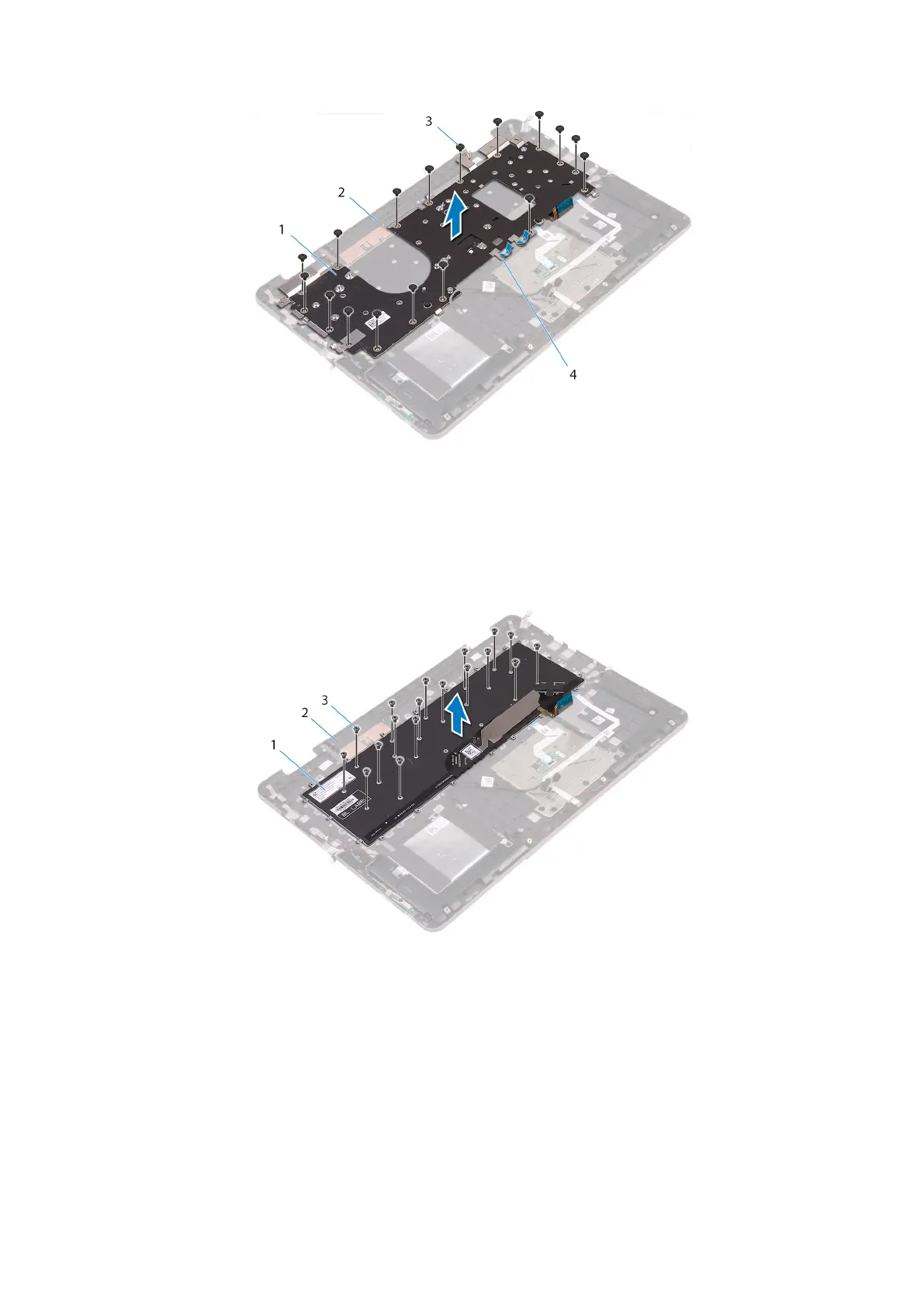

Figure 33. Removing the keyboard bracket
1. keyboard bracket 2. palm-rest assembly
3. screws (17) 4. tape
4. Remove the 18 screws (M1.2x1.4) that secure the keyboard to the palm-rest assembly.
5. Lift the keyboard off the palm-rest assembly.
Figure 34. Removing the keyboard
a. keyboard
b. palm-rest assembly
c. screws (18)
68
Removing the keyboard
