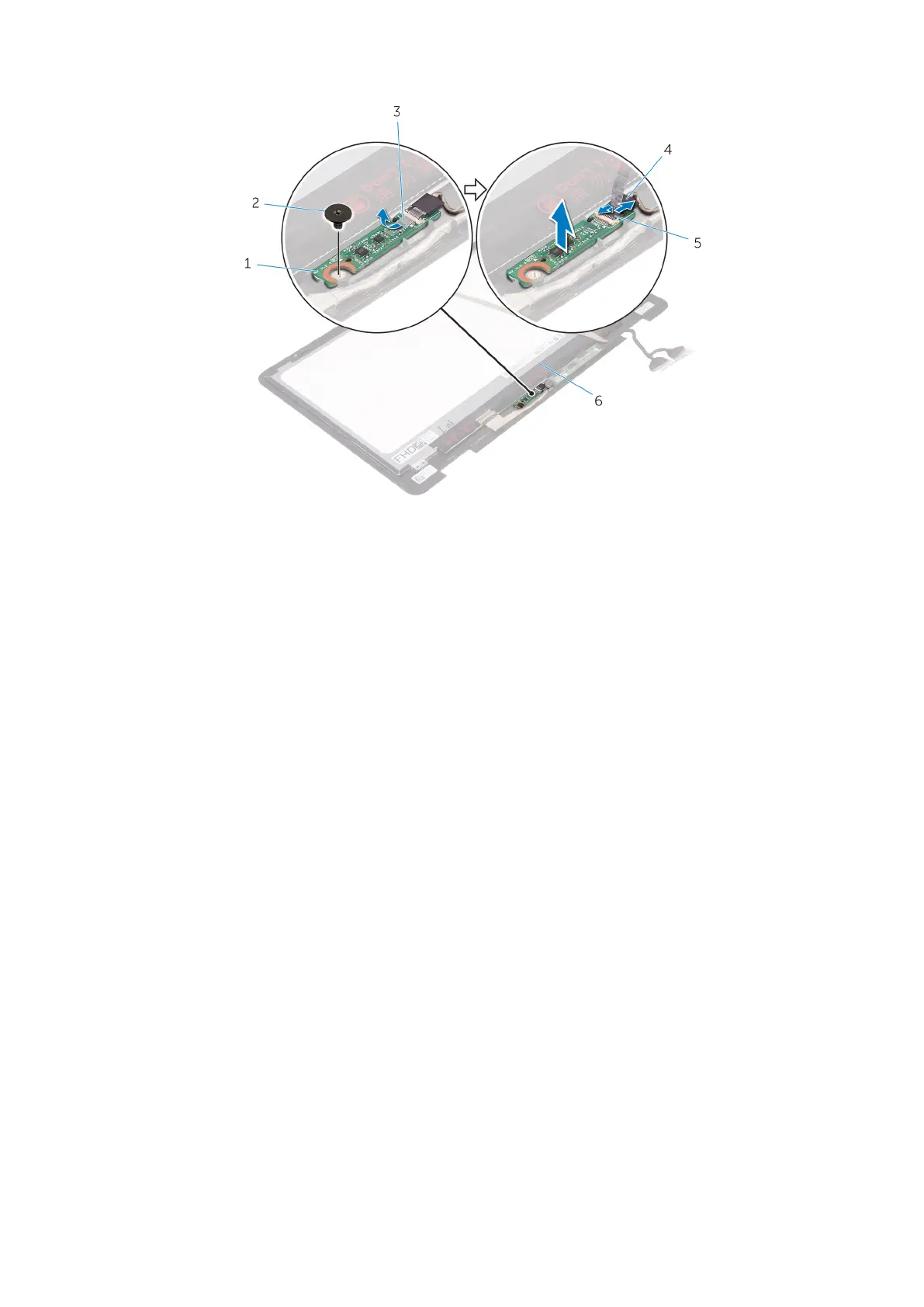

Figure 40. Removing the sensor-board cable

sensor board 2. screw

3. tape 4. sensor-board cable

5. latch

Removing the sensor board 81
