Dell P51F - Page 66

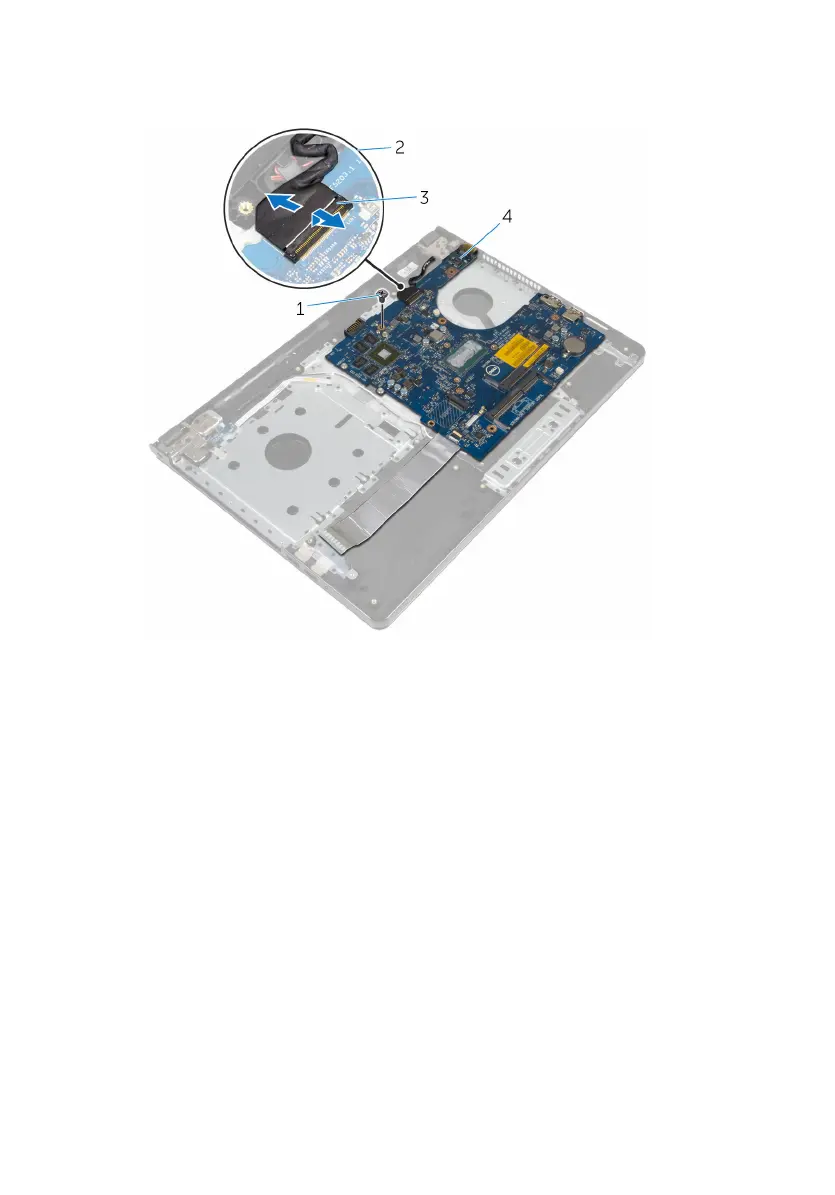

6 Remove the screw that secures the system board to the palm-rest
assembly.
1 screw 2 display cable
3 latch 4 system board
7 Carefully lift the system board from the inner edge and release the ports
from the slots on the palm-rest assembly.
66
