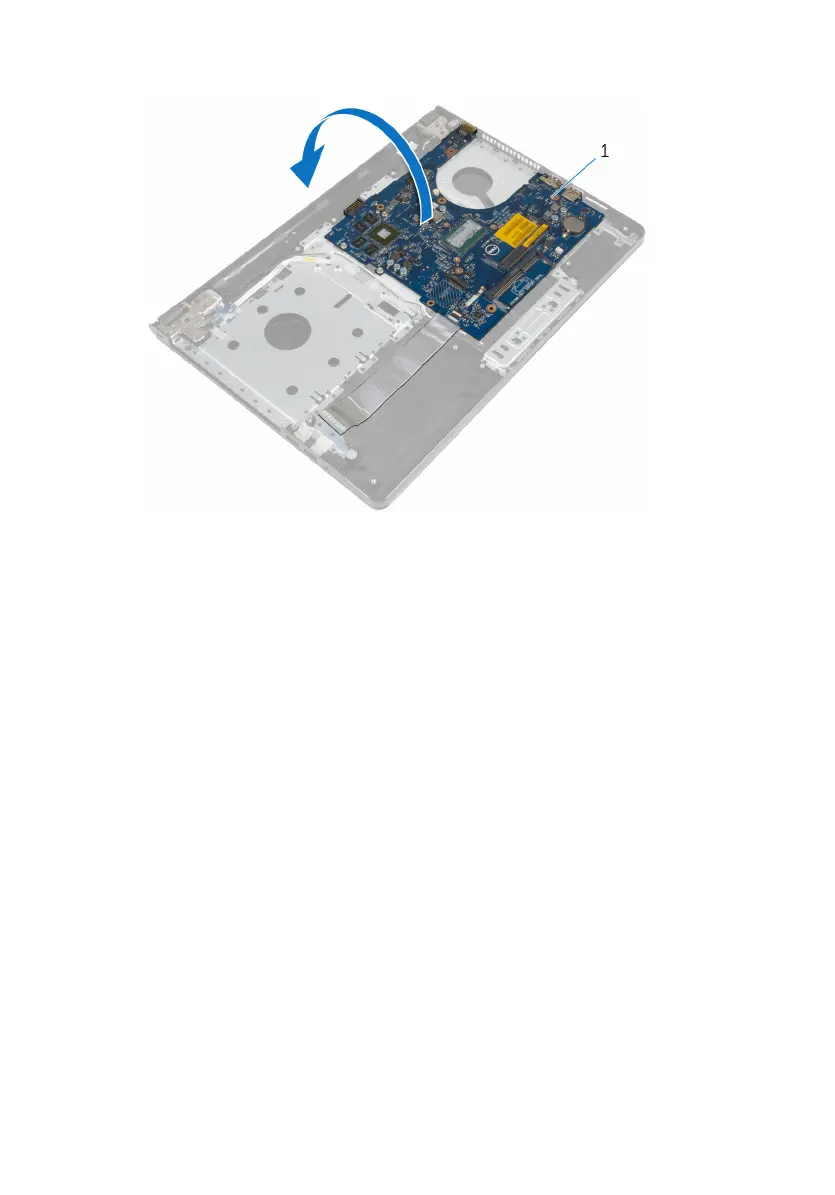

8 Turn the system board over.

1 system board

9 Lift the latch and disconnect the I/O-board cable from the system board.

10 Disconnect the power-adapter port cable from the system board.
