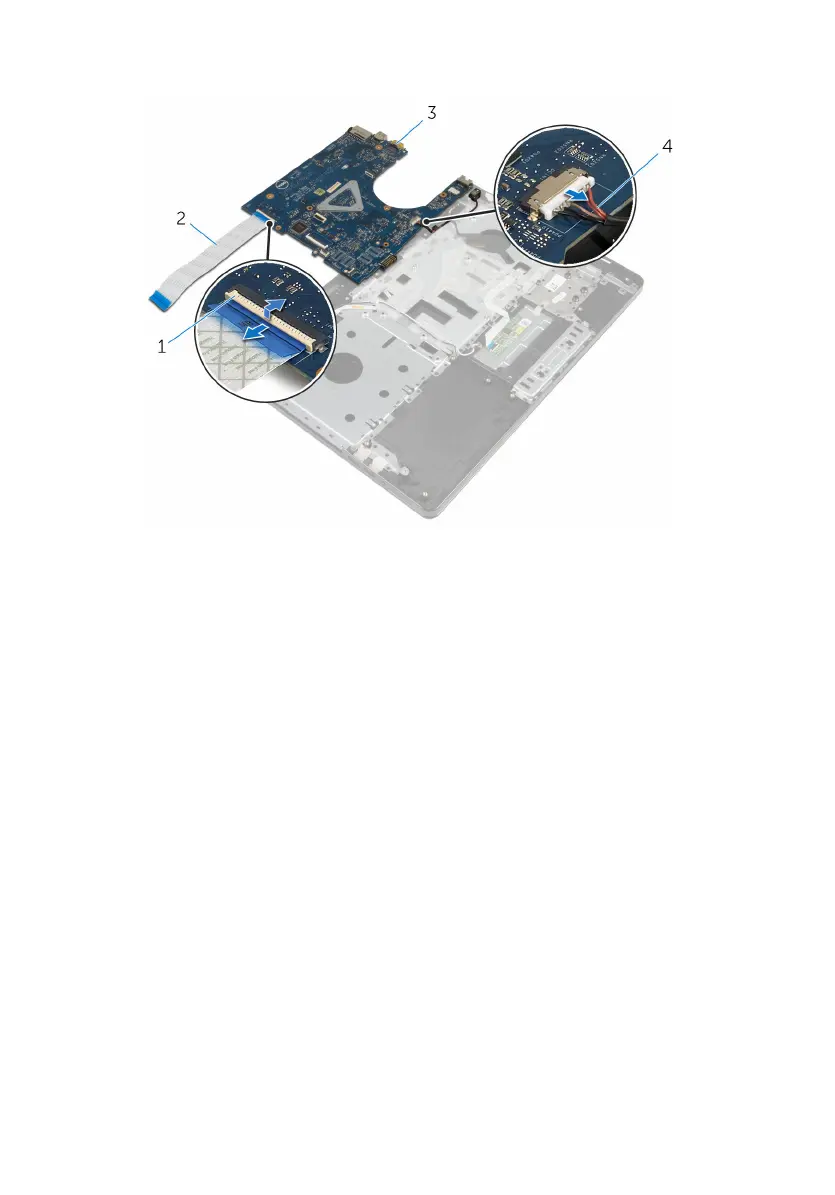

11 Lift the system board off the palm-rest assembly.

1 latch 2 I/O-board cable

3 system board 4 power-adapter port cable
