Dell P54G - Page 44

2 Peel o the touchpad cable from the keyboard and palm-rest assembly.

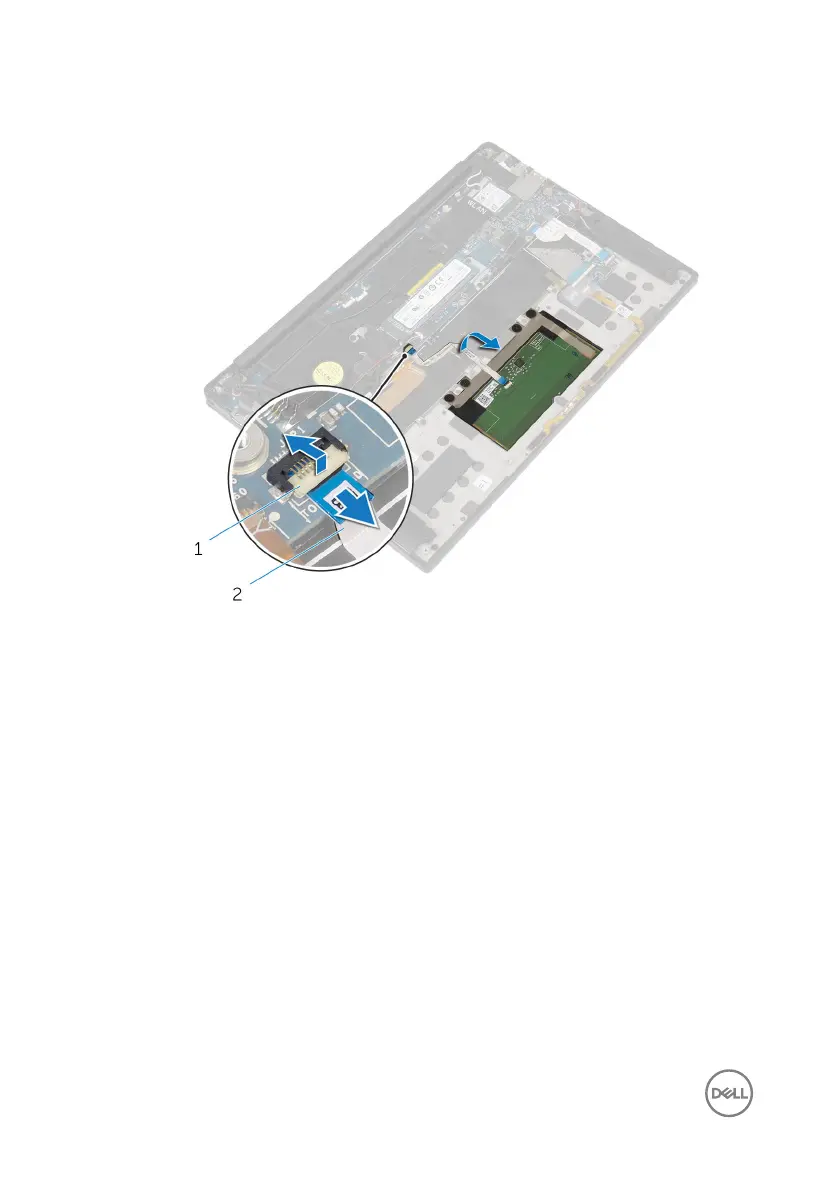

Figure 13. Removing the touchpad cable
1 latch 2 touchpad cable
3 Remove the four screws (M2x2) that secure the touchpad to the palm-rest
assembly. If applicable, peel o any foam adhering the touchpad to the palm-rest
assembly.
44
