4 Lift the touchpad from the inner edge and remove it from the palm-rest

assembly.

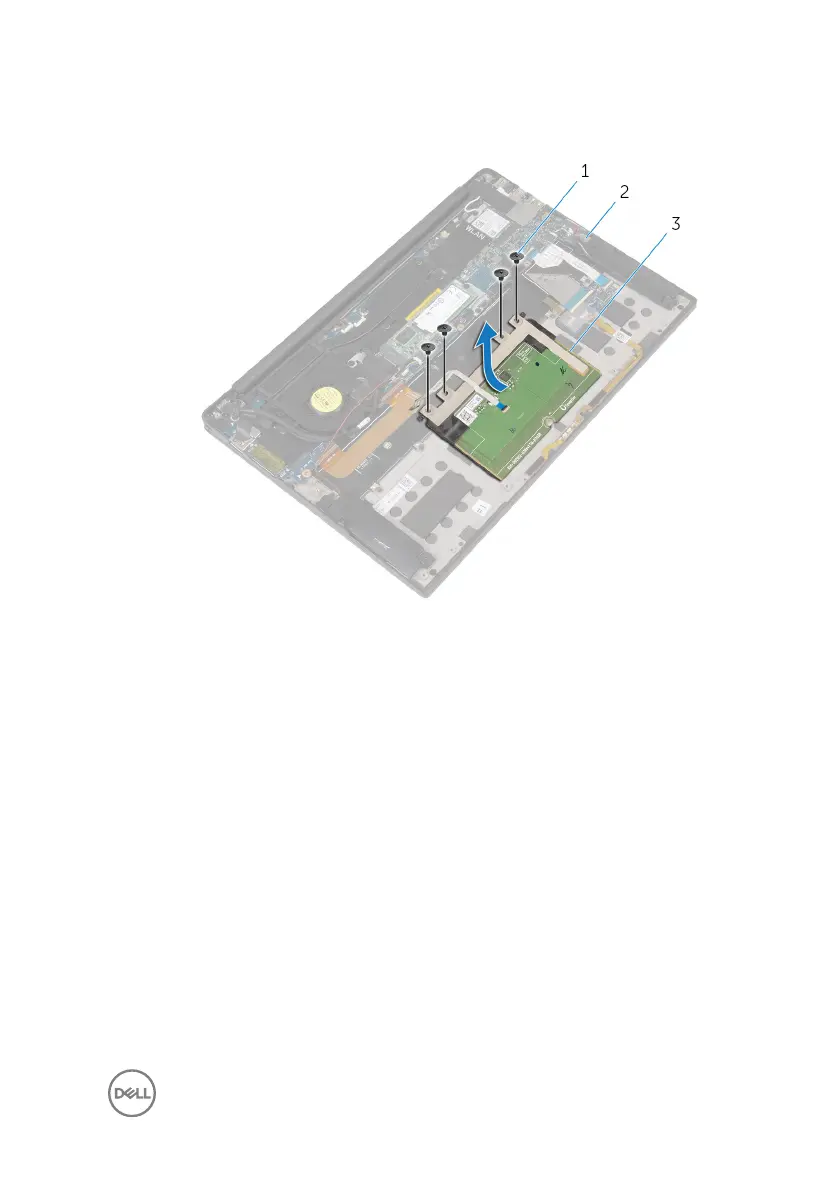

Figure 14. Removing the touchpad

1 screws (4) 2 palm-rest assembly

3 touchpad
