13 Using the pull tab, disconnect the display cable from the system board.

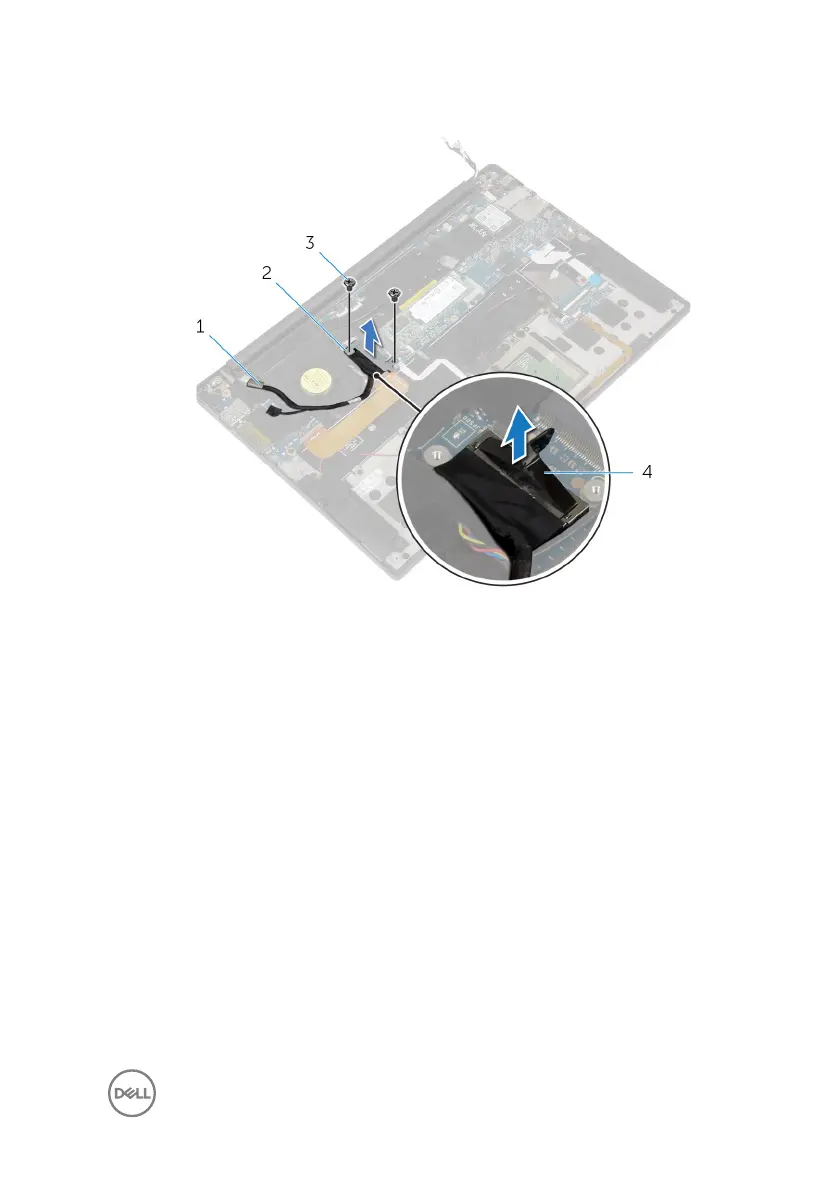

Figure 20. Removing the display assembly

1 display cable 2 display-cable bracket

3 screws (2) 4 pull tab
