9 Note the display-cable routing and remove the cable from the routing guides on
the fan.
10 Peel o the tape from the display-cable bracket.

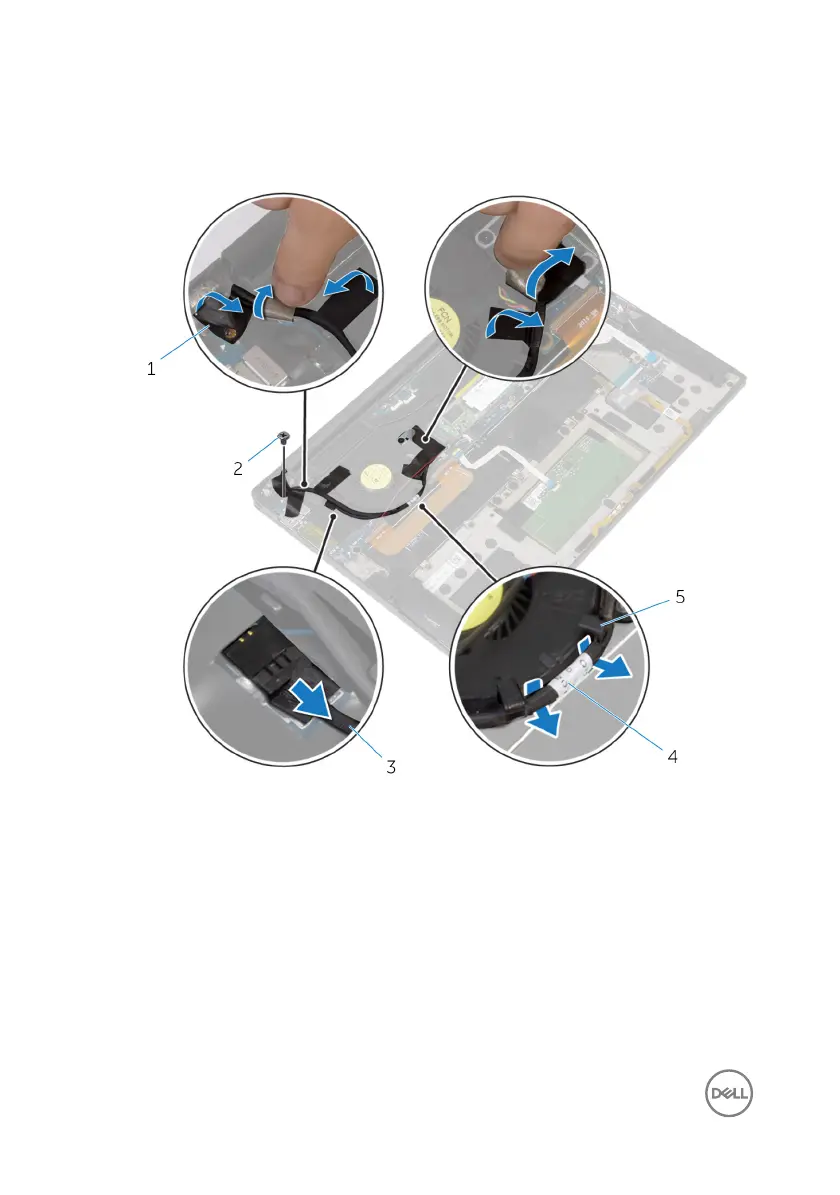

Figure 19. Removing the display assembly
1
tapes (4) 2 screw
3 media-card reader cable 4 display cable
5 routing guides (2)
11 Remove the two screws (M2x3) that secure the display-cable bracket to the
system board.
12 Lift the display-cable bracket o the display cable.
56
