5 Peel o the tape that secures the speaker cable to the system board.
6 Disconnect the fan cable from the system board.
7 Open the latches and disconnect the I/O-board cable and the touchpad cable
from the system board.

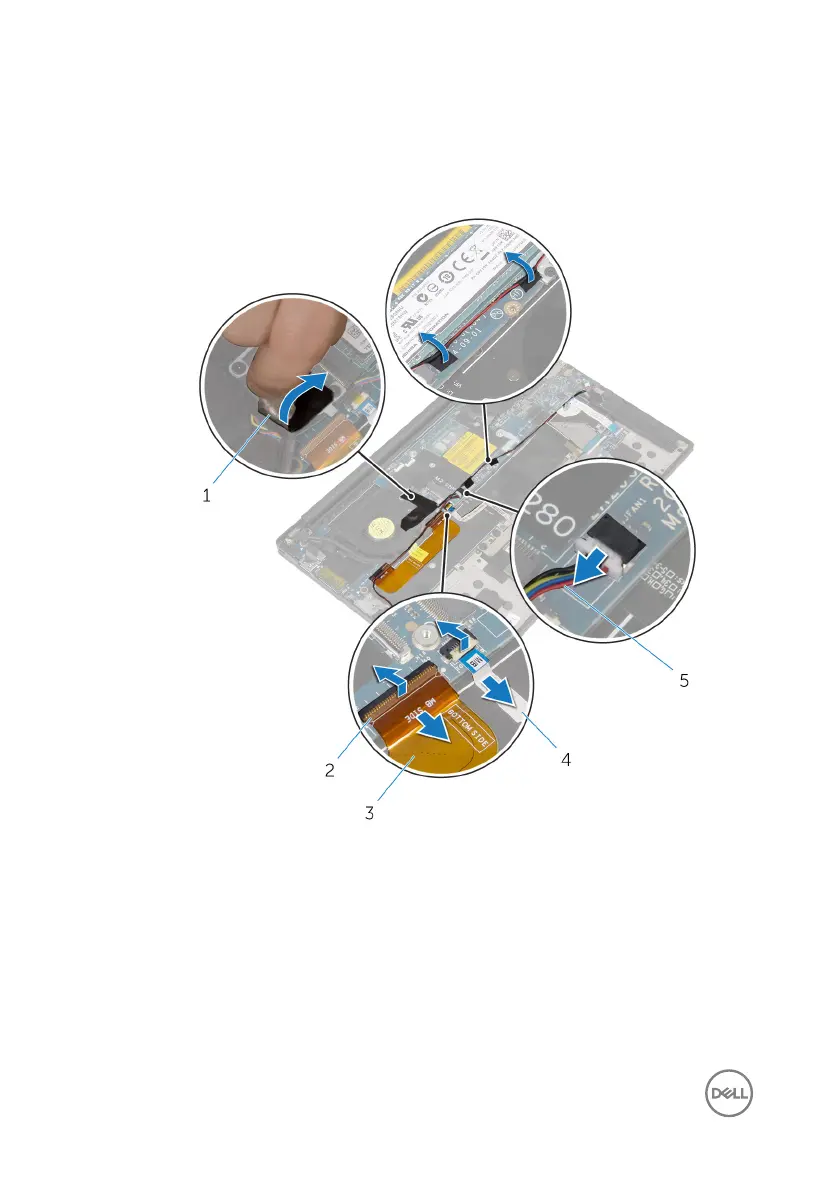

Figure 26. Removing the system board
1
tape (3) 2 latches (2)
3 I/O-board cable 4 touchpad cable
5 fan cable
8 Remove the two screws (M2x3) that secure the display-cable bracket to the
system board.
9 Lift the display-cable bracket o the display cable.
