Dell P54G - Page 71

10 Using the pull tab, disconnect the display cable from the system board.

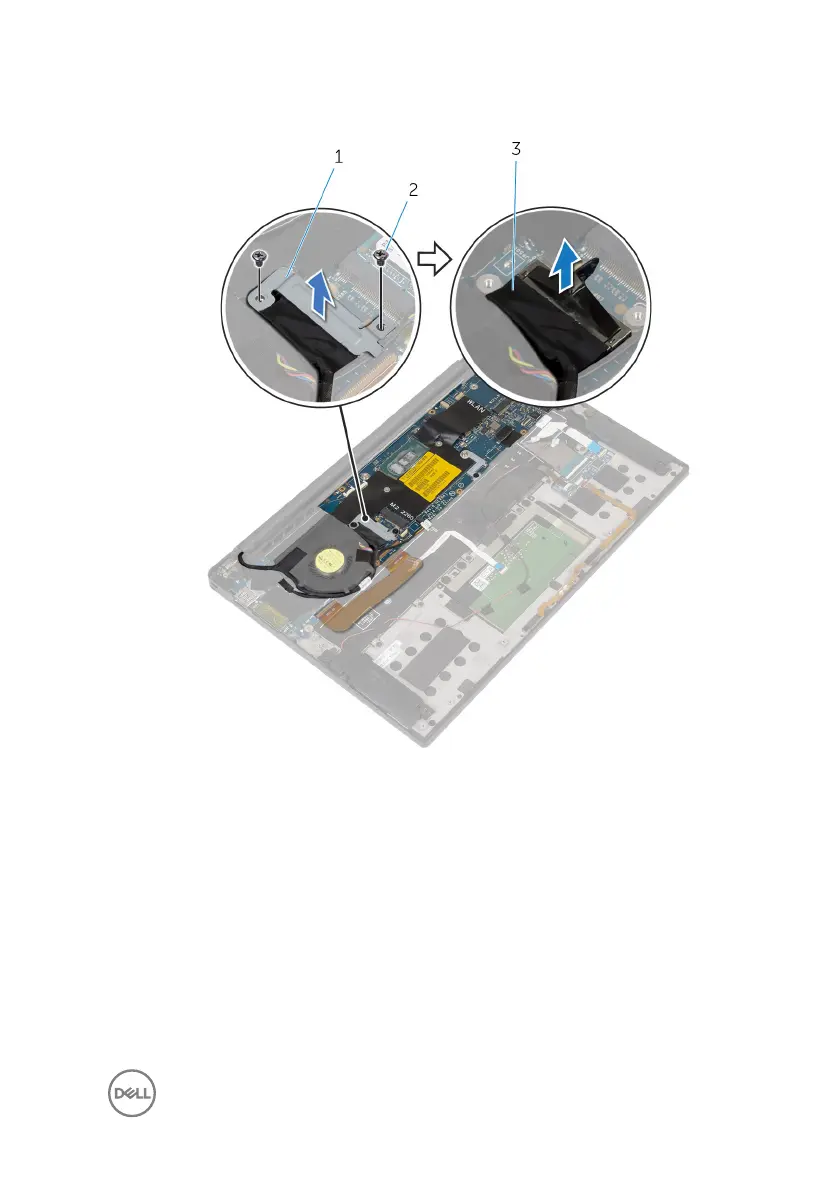

Figure 27. Removing the system board
1
display-cable bracket 2 screws (2)
3 display cable
11 Remove the six screws (M1.6x3) that secure the system board to the palm-rest
assembly.
71
