2 Note the display-cable routing and remove the cable from the routing guides on
the fan.

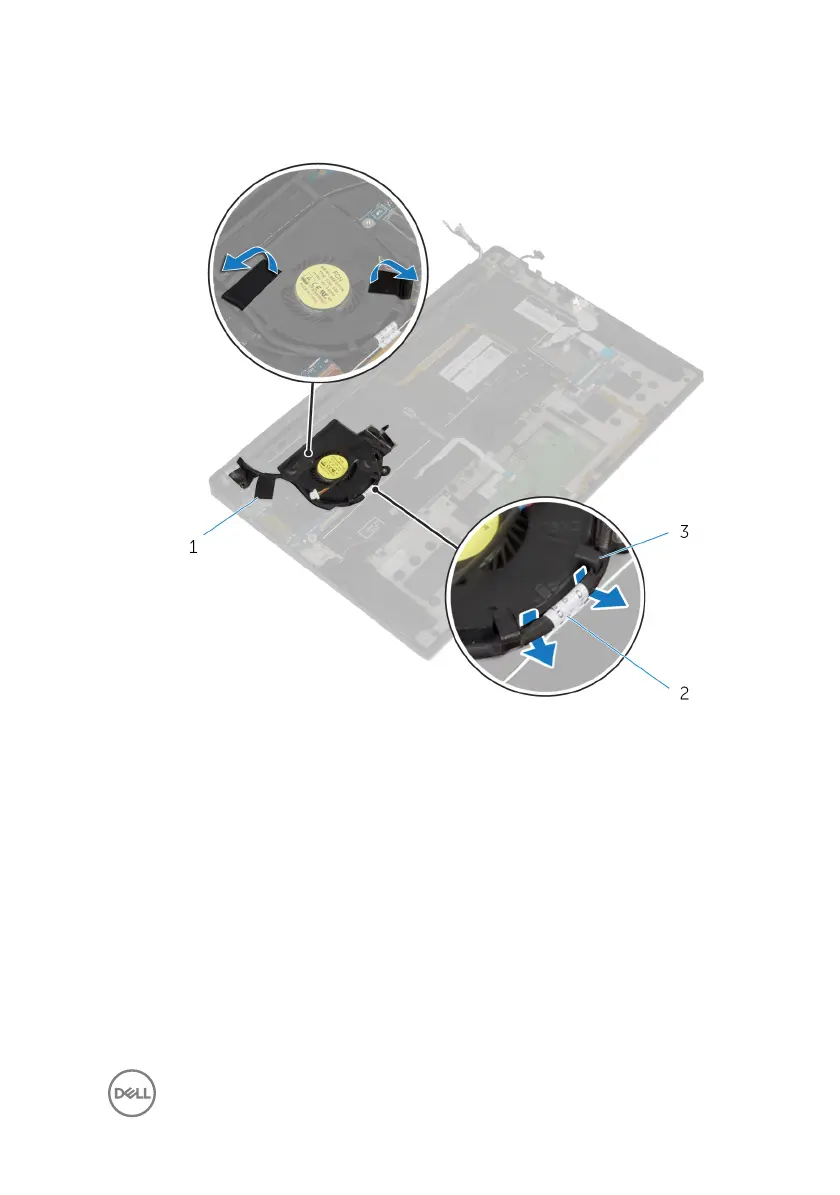

Figure 30. Removing the fan
1
tape (3) 2 display cable
3 routing guides (2)
3 Remove the screw (M1.6x3) that secures the fan to the palm-rest assembly.
