4 Lift the fan along with its cable o the palm-rest assembly.

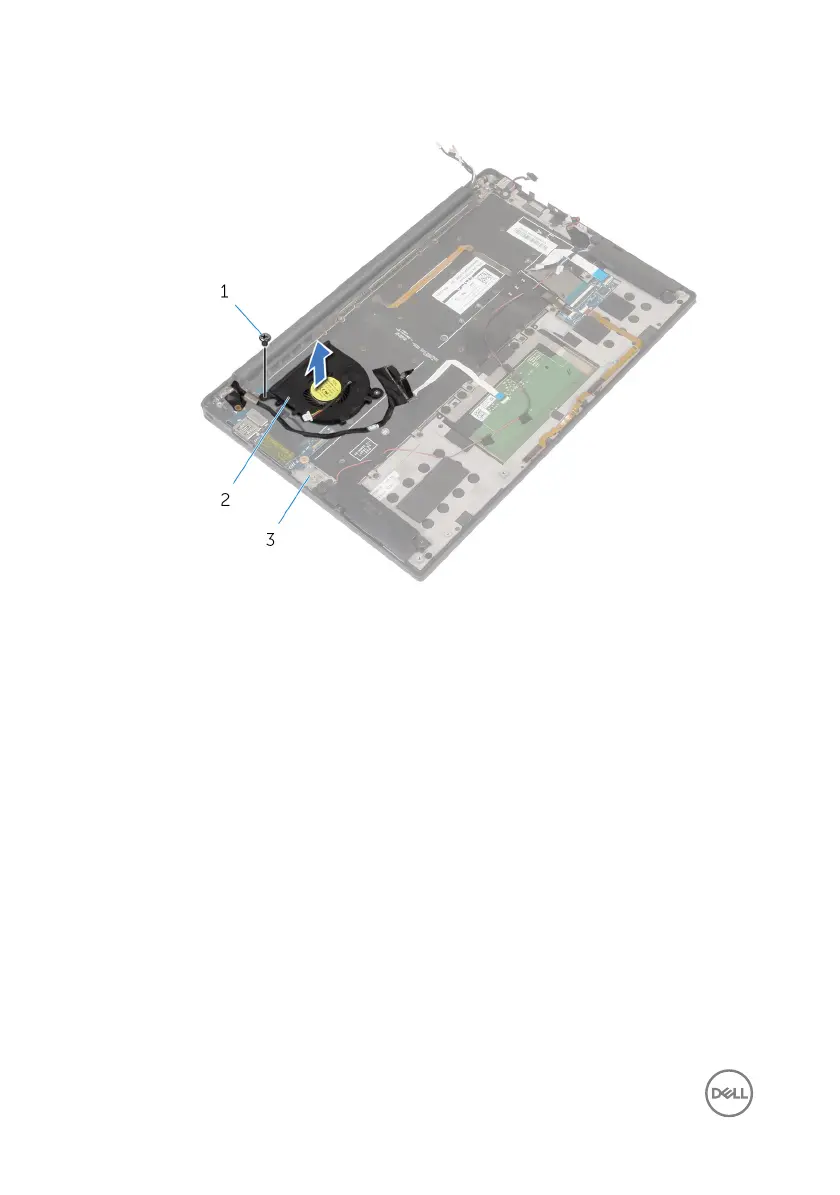

Figure 31. Removing the fan

1 screw 2 fan

3 palm-rest assembly
