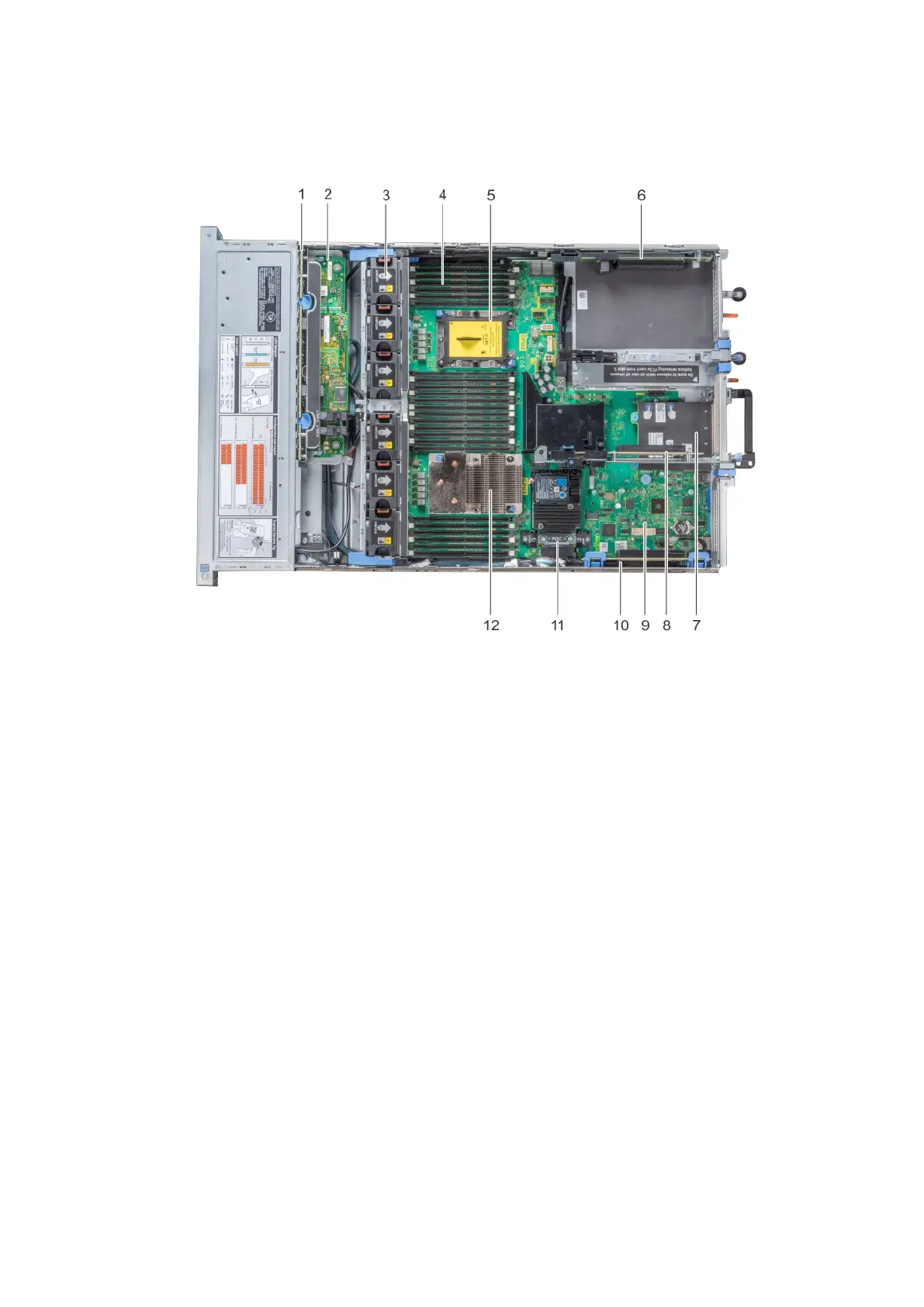

Figure 2. Supported configuration of VxRail P570, P570F, V570, and V570F
1.
drive backplane 2. backplane expander card
3. cooling fan in the cooling fan assembly (6) 4. memory module
5. CPU2 processor and heat sink module socket (with dust
cover)
6. expansion card riser 3
7. network daughter card 8. expansion card riser 2
9. system board 10. expansion card riser 1
11. integrated storage controller card 12. CPU1 processor and heat sink module
12 Overview
