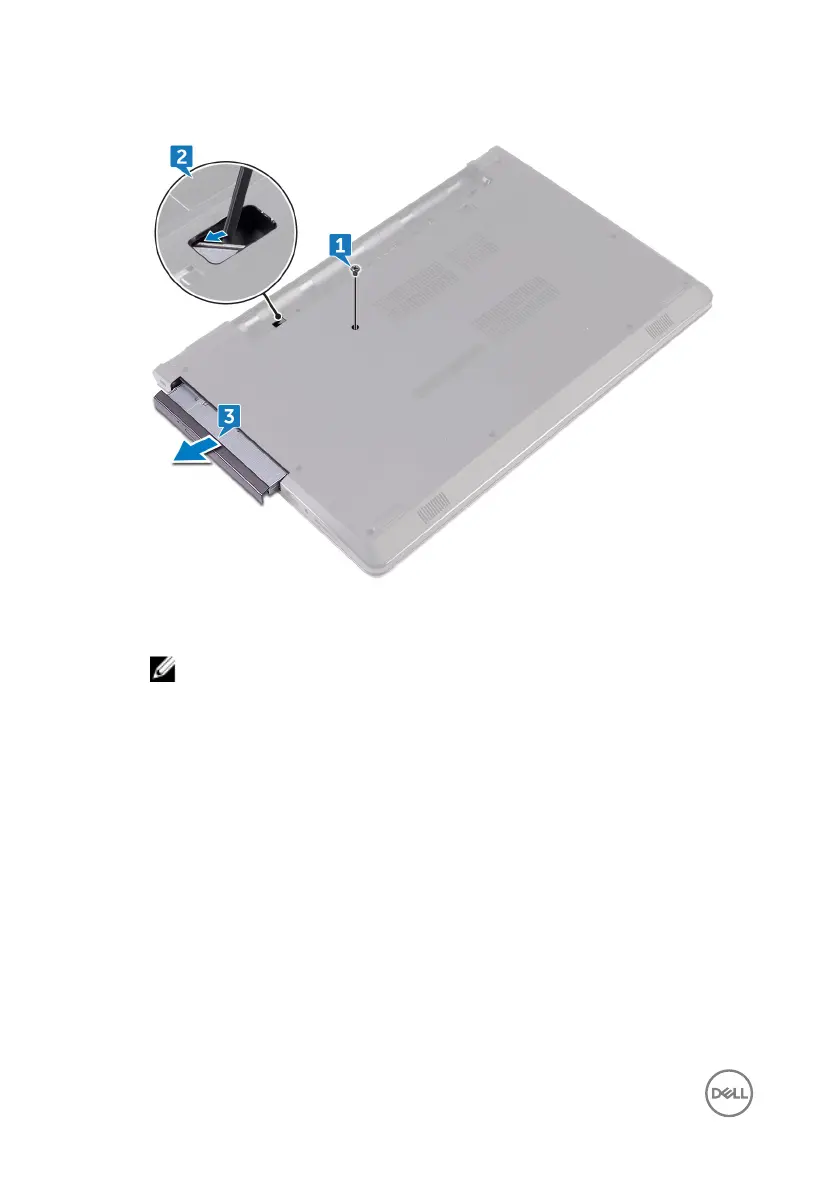

3 Pull the optical-drive assembly out of the optical-drive bay.

4 Remove the screw (M2x3) that secures the optical-drive bracket to the optical

drive.

NOTE: Note the orientation of the optical-drive bracket so that you can

replace it correctly.
