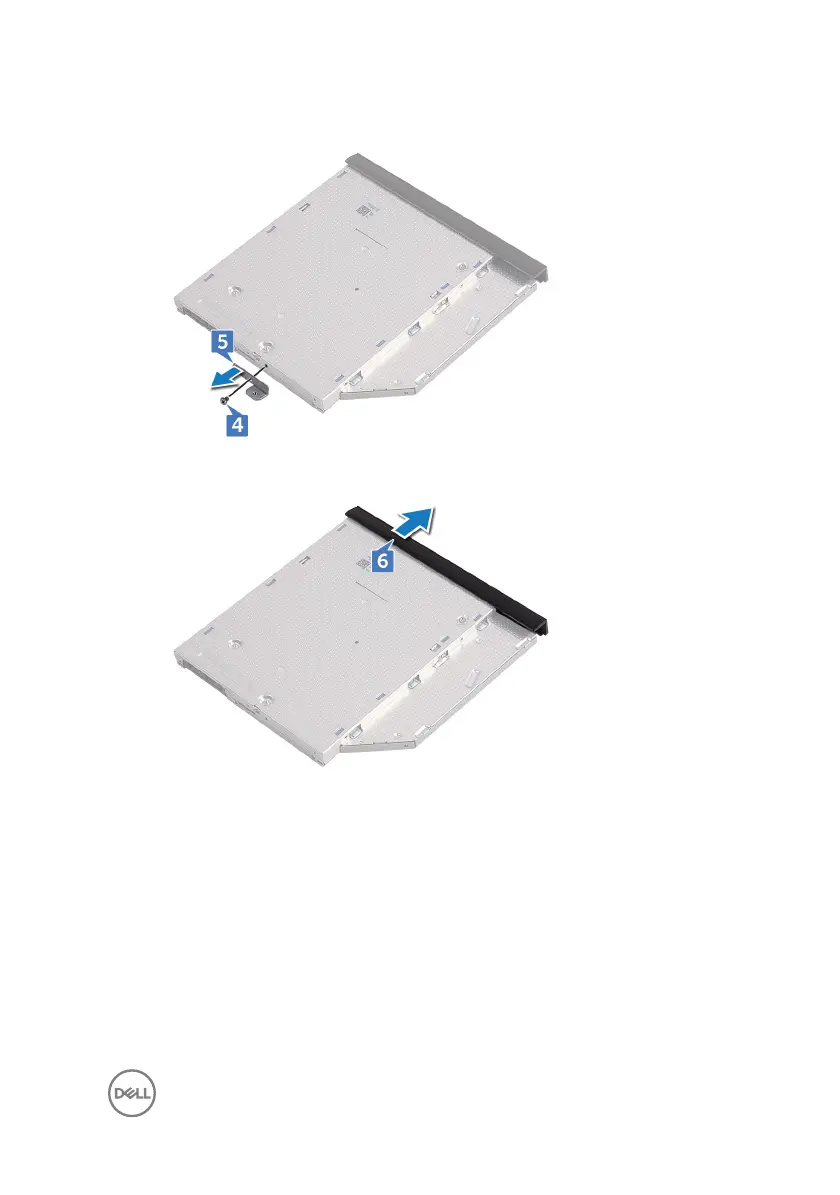

5 Remove the optical-drive bracket from the optical drive.

6 Carefully pull the optical-drive bezel and remove it from the optical drive.
