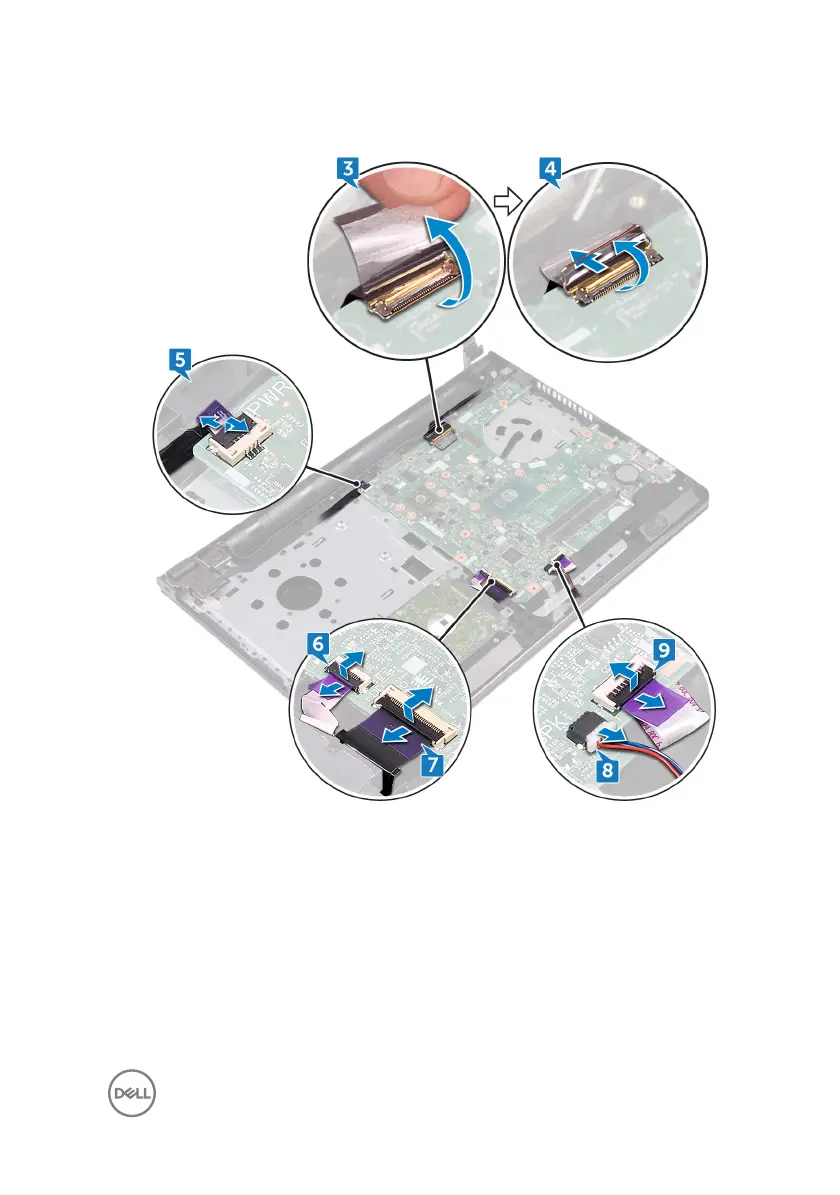

9 Open the latch and disconnect the touch-pad cable from the system board.

10 Remove the two screws (M2x3) that secures the system board to the palm-rest

assembly.

11 Gently release the ports on the system board from the slots on the palm-rest

assembly.
