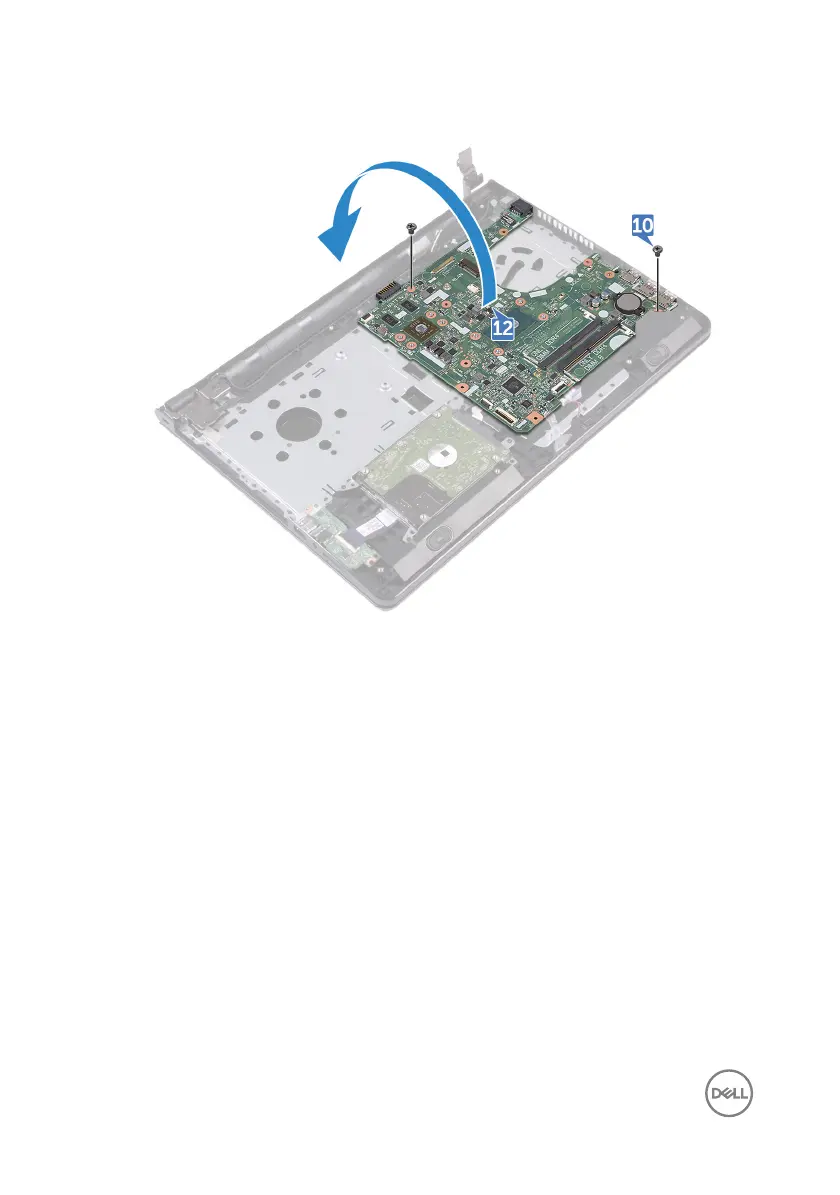

12 Carefully turn the system board over.

13 Peel the tape that secures the power-adapter port cable to the system board

and disconnect the power-adapter port from the system board.
