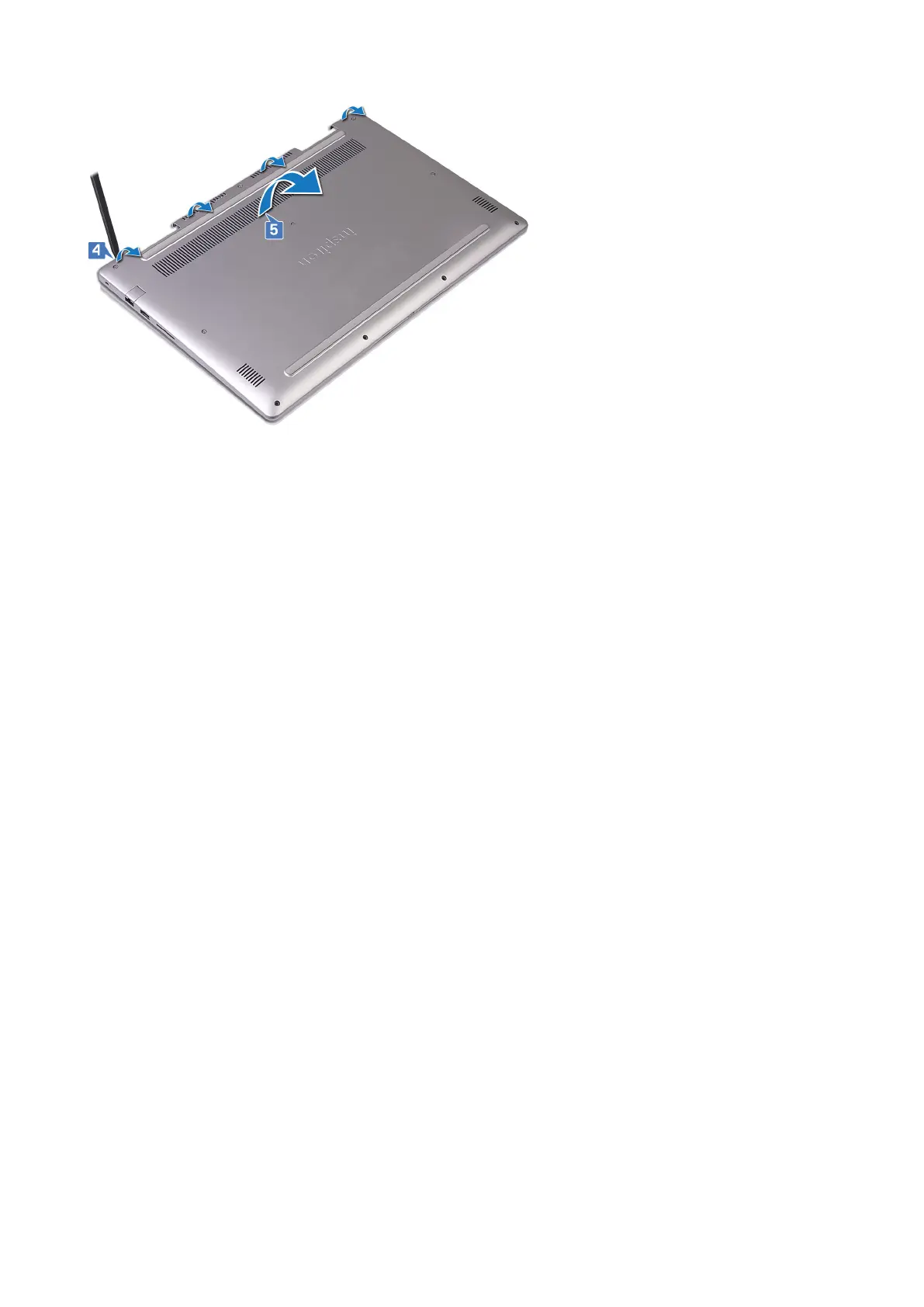

6. Disconnect the battery cable from the system board.

7. Press and hold the power button for 5 seconds to ground the system board.

12 Removing the base cover
