Dell P70F - Page 43

To Next Page

To Previous Page

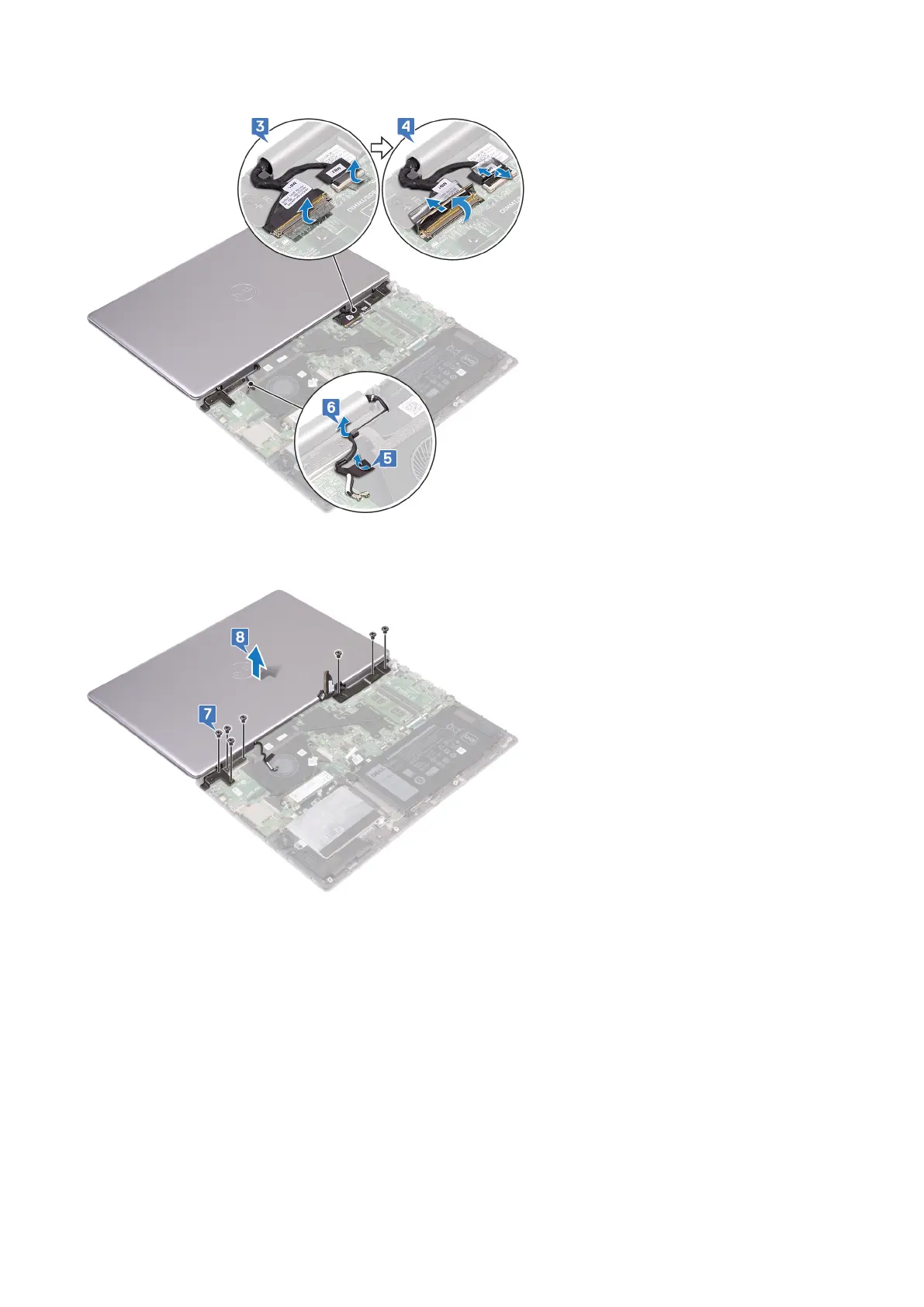

7. Remove the seven screws (M2.5x5) that secure the display assembly to the palm-rest assembly.

8. Lift the display assembly off the palm-rest assembly.

Removing the display assembly
