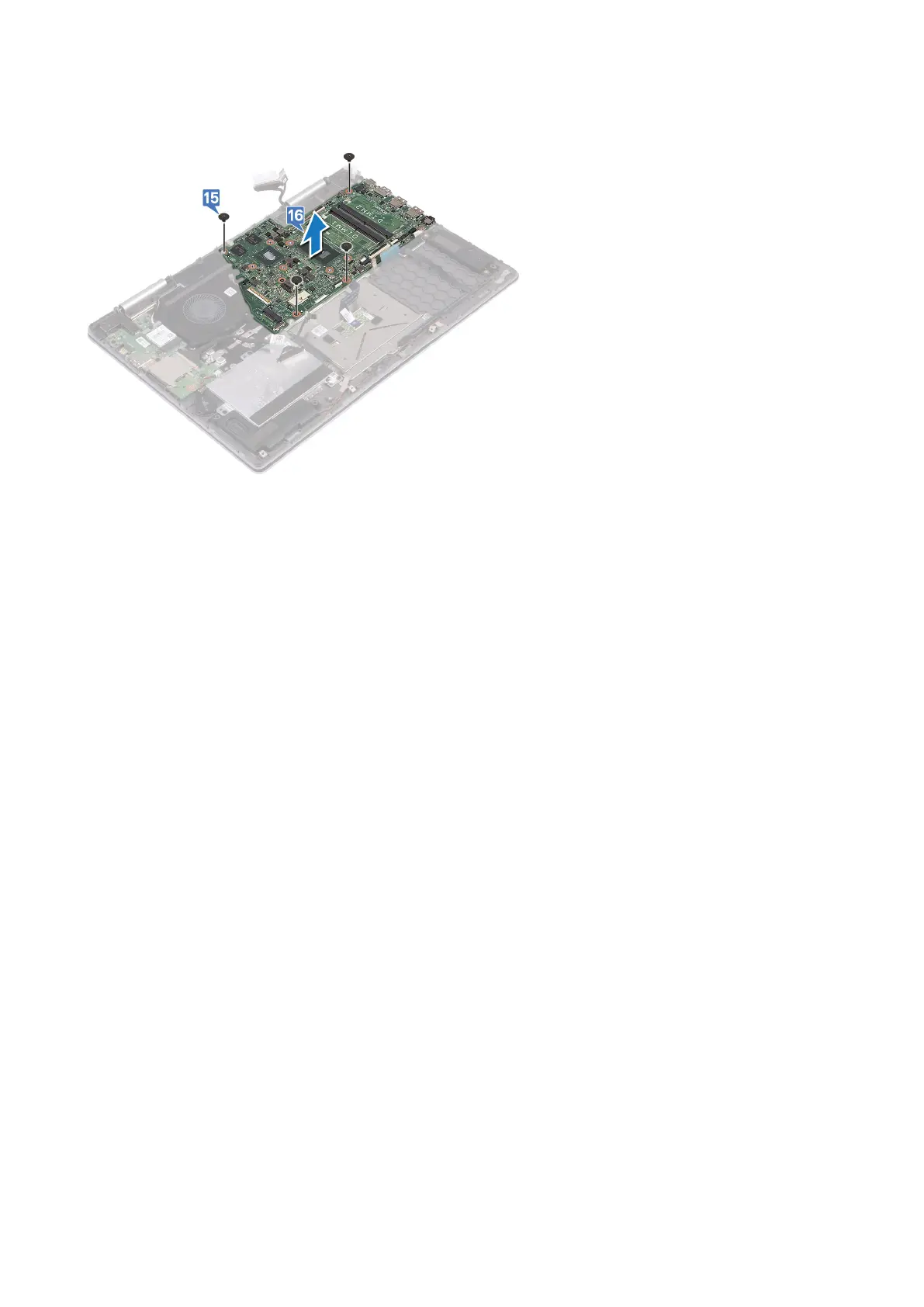

15. Remove the four screws (M2x2) that secure the system board to the palm-rest assembly and keyboard shield.

16. Lift the system board off the palm-rest assembly.

Removing the system board 47
