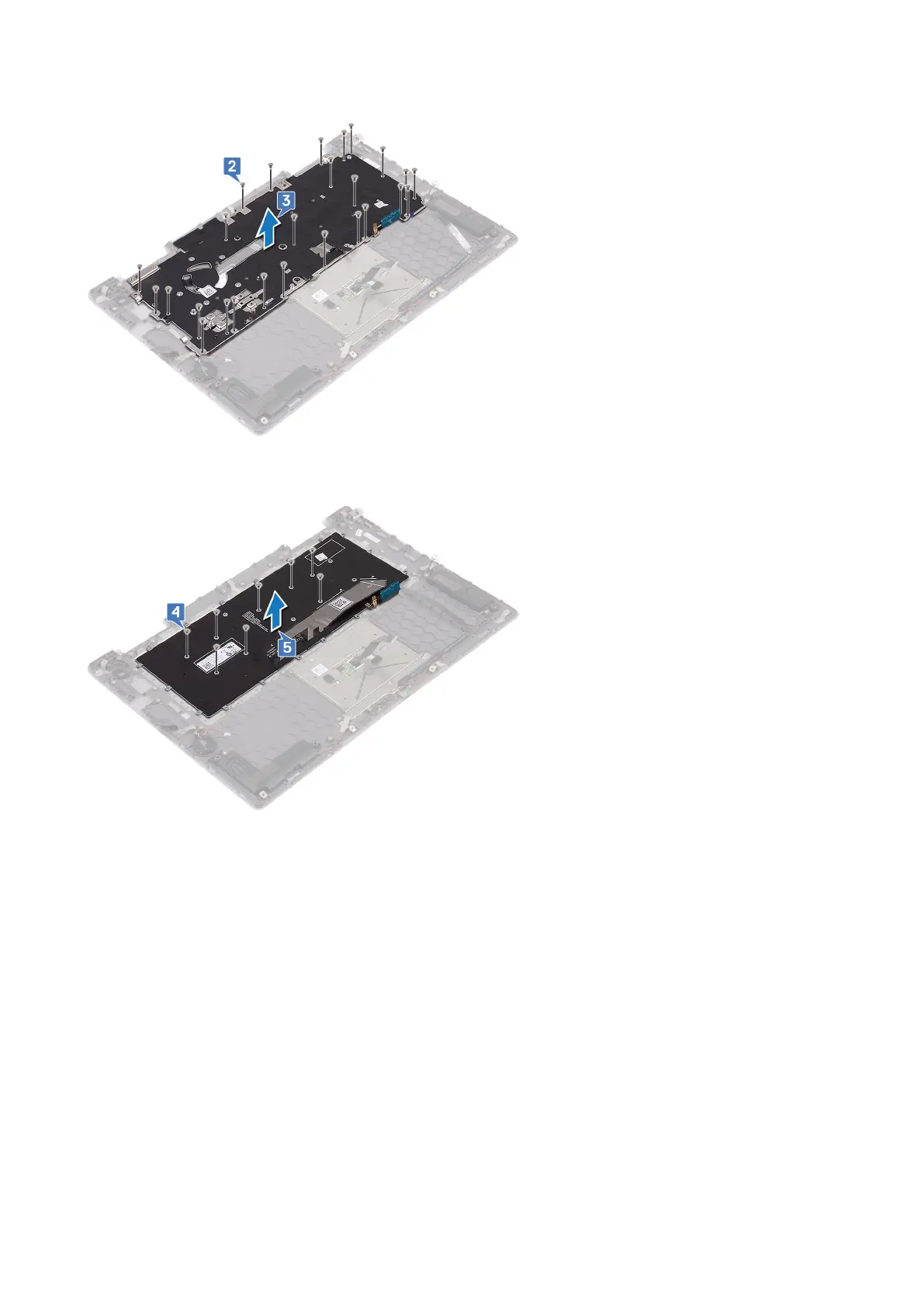

3. Lift the keyboard shield off the keyboard.

4. Remove the eight screws (M1.2x1.5) that secure the keyboard to the palm-rest assembly.

5. Lift the keyboard off the palm-rest assembly.

Removing the keyboard 55
