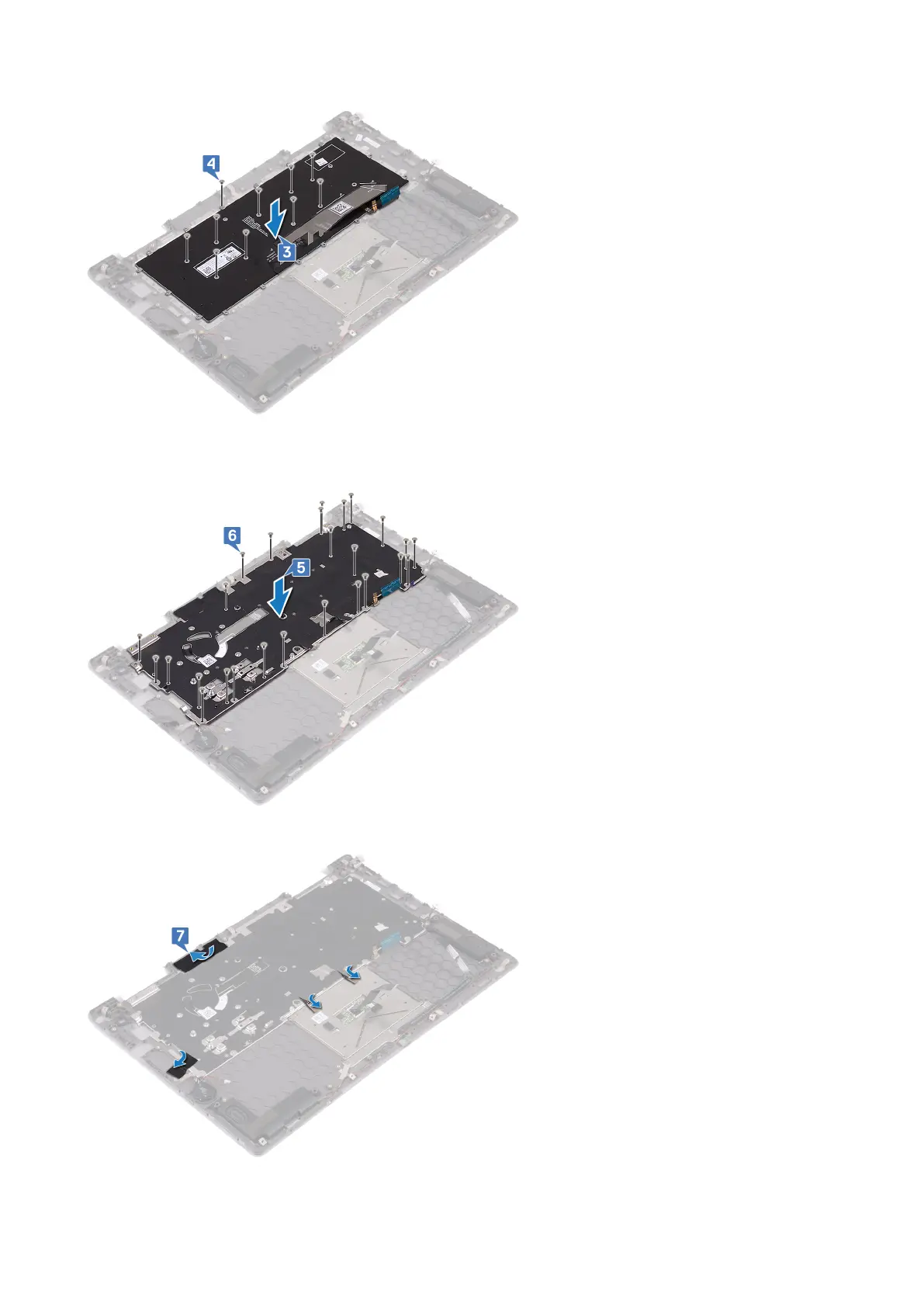

5. Place the keyboard shield onto the keyboard and align the screw holes on the keyboard shield with the screw holes on the
keyboard and the palm-rest assembly.
6. Replace the 26 screws (M1.4x2) that secure the keyboard shield and the keyboard to the palm-rest assembly.
7. Adhere the tapes that secure the keyboard shield to the palm-rest assembly.
Replacing the keyboard
