Starting and Configuring the Device
15
2
Attach the supplied standard AC power cable to the AC connector on the back panel of the device.
Figure 3-1. Connecting to PowerConnect 2800 Series Console Port

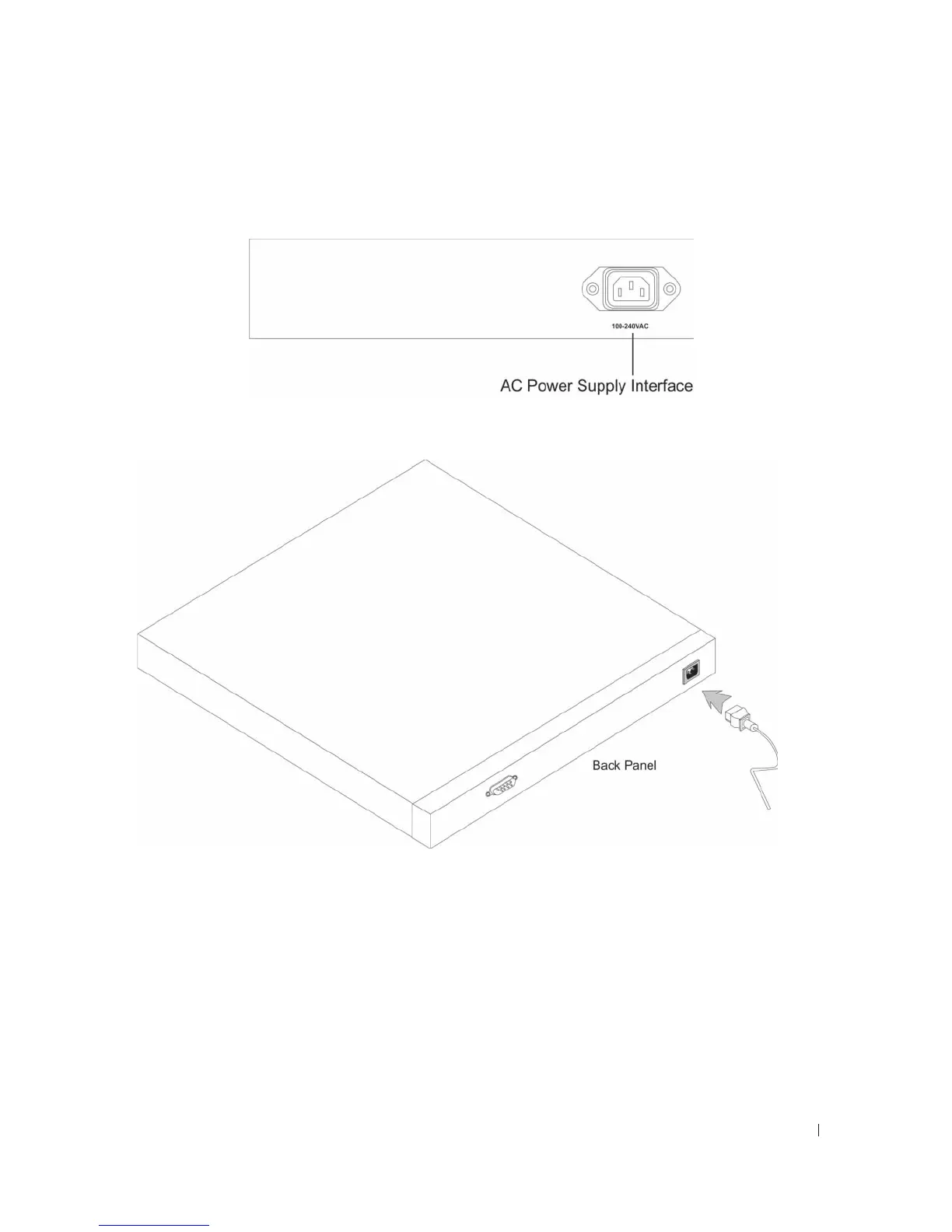

Figure 3-2. Attaching AC Power cable to device
3
Locate an AC power receptacle.
4
Deactivate the AC power receptacle.
5
Connect the device to the AC receptacle.
6
Activate the AC power receptacle.
7
After activating the AC power receptacle, confirm that the device is connected and operating correctly
by examining the LEDs on the front panel.
