Back-Panel Features and Indicators
Figure 1-2 shows the controls, indicators, and connectors located on the system's back panel.

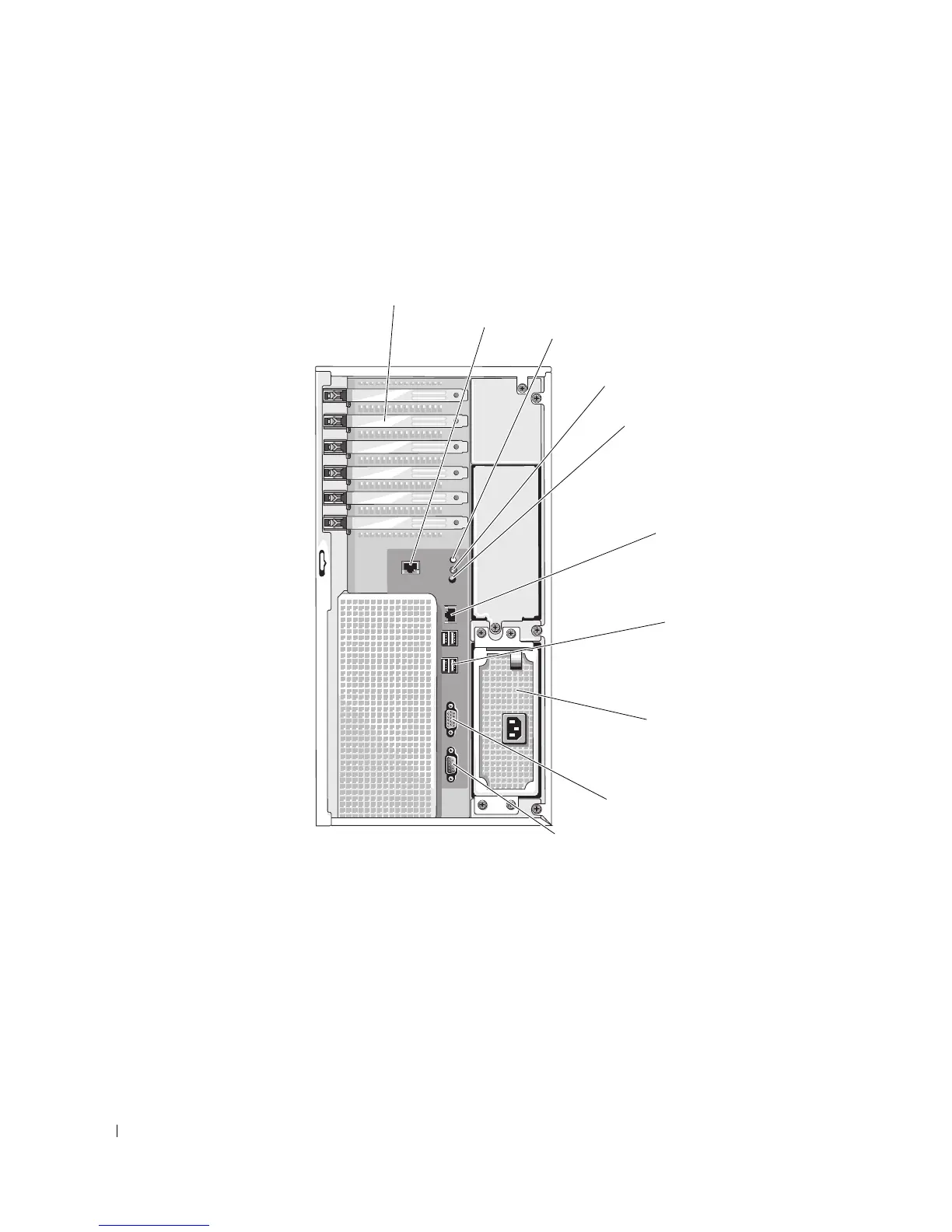

Figure 1-2. Back-Panel Features and Indicators
1 expansion-card slots (6) 2 remote access connector
(optional)
3 system status indicator
4 system identification button 5 system status indicator
connector
6 NIC connector
7 USB connectors (4) 8 power supply 9 video connector
10 serial connector
