Installing System Components 55
3
R
emove the fan from the bracket by squeezing the release handles on top of the fan and pulling the
fan out of the bracket. See
Figure 3-7
.
NOTICE: Do not remove more than one fan from the system at a time and do not operate the system with any fan
removed for an extended period of time. Overheating can occur resulting in a system shutdown and loss of data.
4
Replace the fan.
5
Rotate the fan bracket toward the shroud and slightly squeeze the side tabs so that the tabs enter the
latch slots.
6 Close the system. See
"Closing the System" on page 48
.

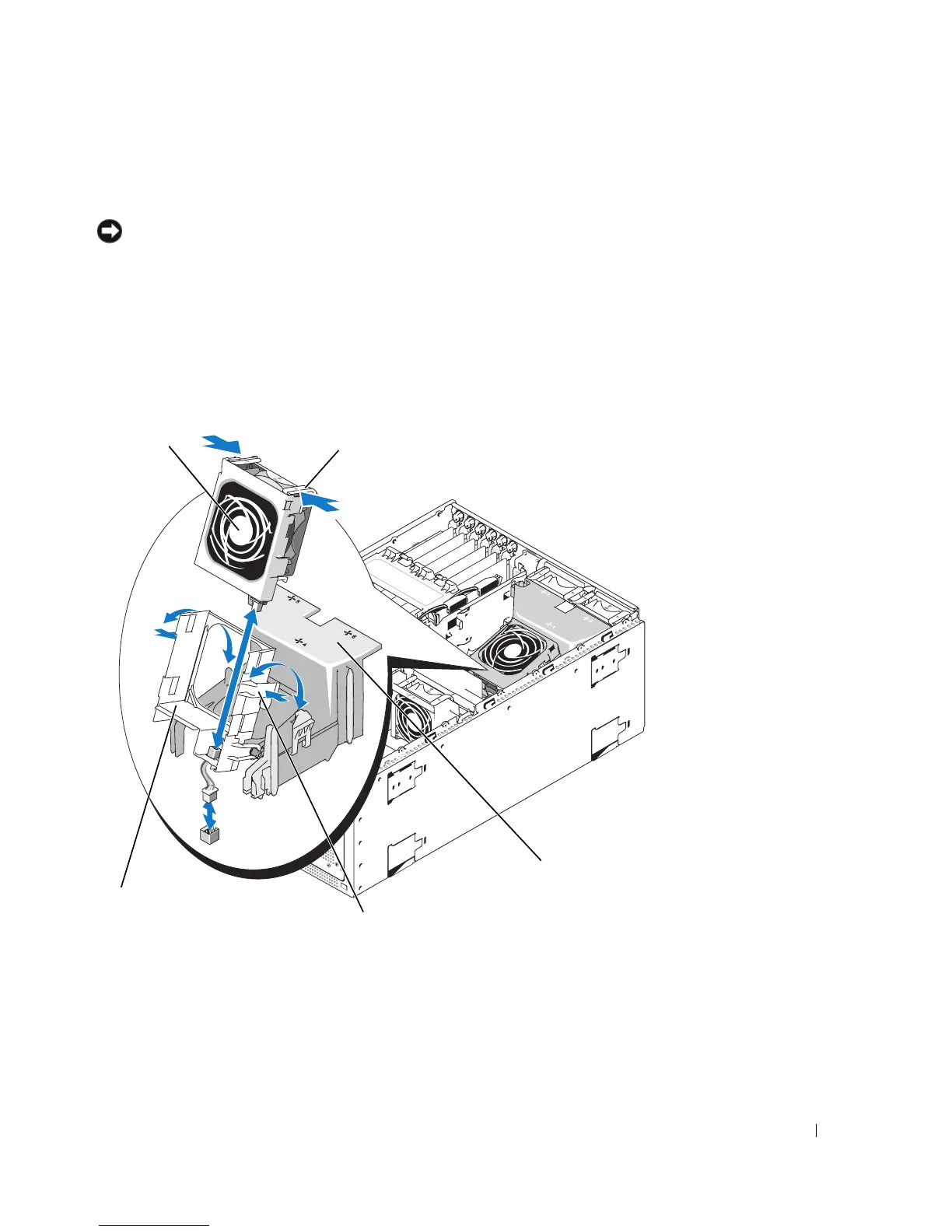

Figure 3-7. Removing and Replacing the Cooling Shroud Fan
1 fan 2 fan release latches (2) 3 cooling shroud
4 fan bracket latch (2) 5 fan bracket
1
3
2
5
4
