16 Tower-to-Rack Conversion Guide

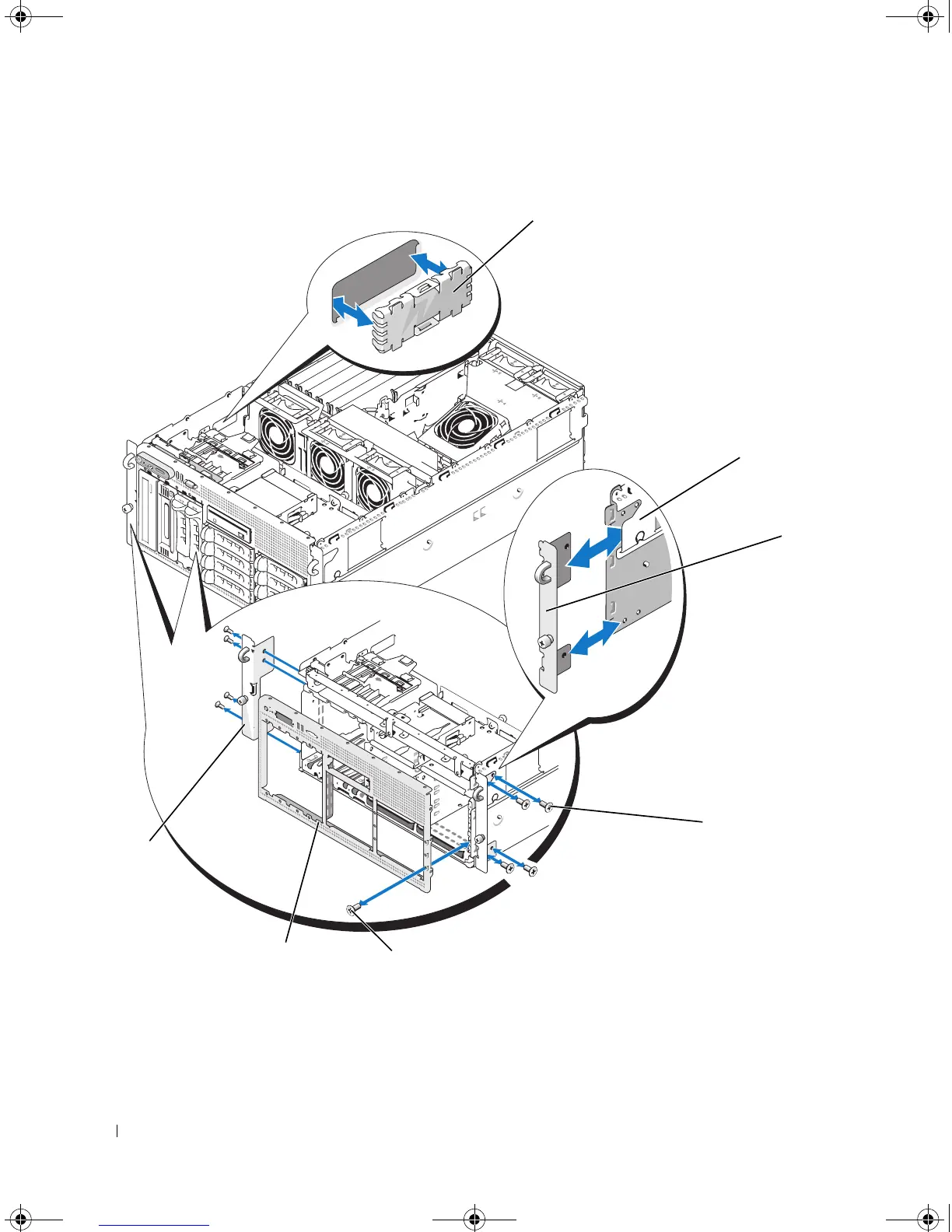

Figure 1-6. Installing the Rack Front Plate and Rack Ears
1 metal filler panel 2 chassis double wall 3 right rack ear
4 6-32 Phillips flathead screw (8) 5 M3 x 8 T10 Torx flathead screw
(34)
6 rack front plate
7 left rack ear
3
6
5
7
4
1
2
