54 Installing System Components

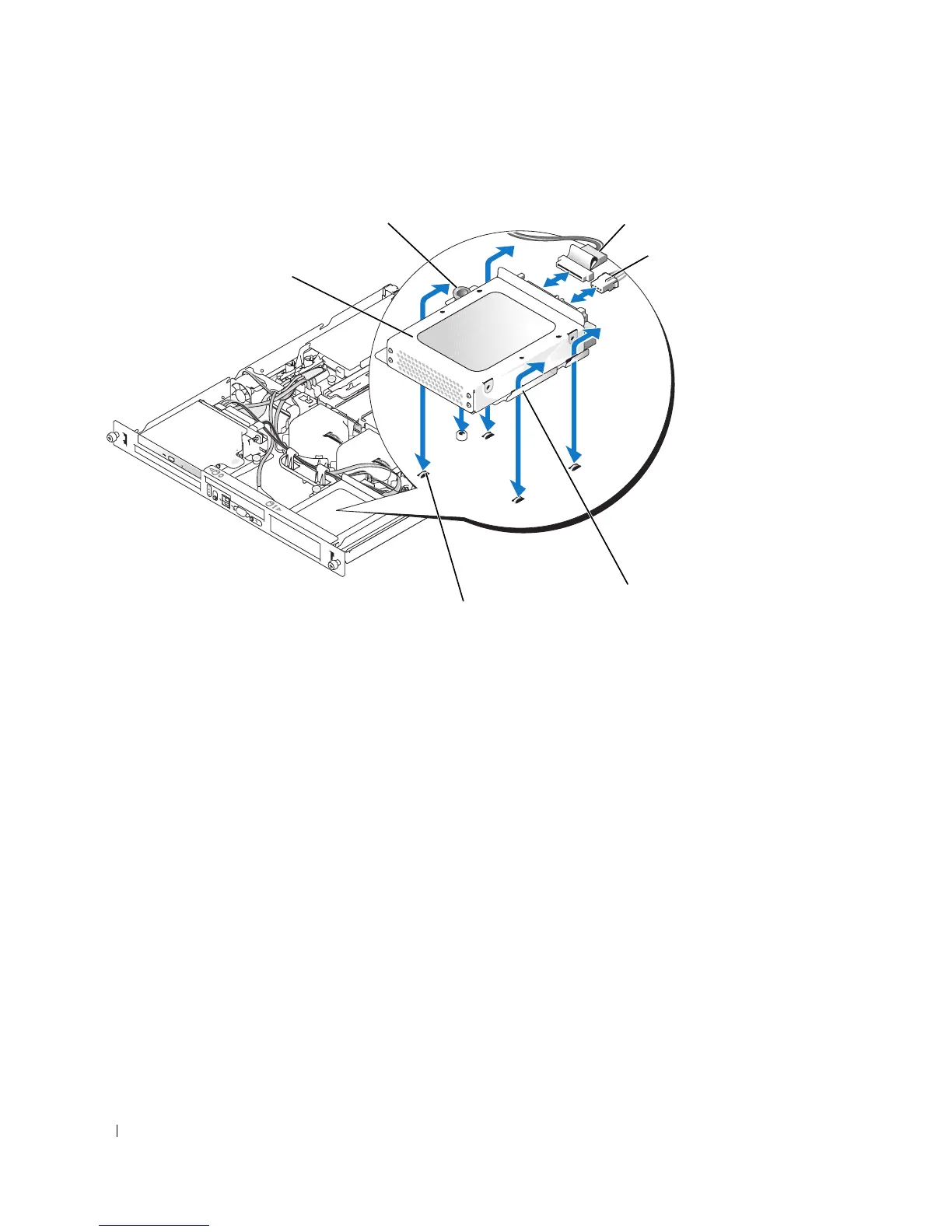

Figure 3-8. Removing the HDD1 Hard-Drive Carrier
6
Using a #2 Phillips screwdriver, remove the four screws that secure the hard drive to the carrier and
remove the drive from the carrier. See Figure 3-10.
1 HDD1 hard-drive carrier 2 plunger 3 interface cable
4 power cable 5 notches (4) 6 tabs (4)
2
1
3
4
6
5
