Dell PowerEdge 860 - 6 Jumpers and Connectors; System Board Jumpers

Jumpers and Connectors 97
Jumpers and Connectors
This section provides specific information about the system jumpers and describes the connectors
on the various boards in the system.
System Board Jumpers
Figure 6-1 shows the location of the configuration jumpers on the system board. Table 6-1 lists the
jumper settings.

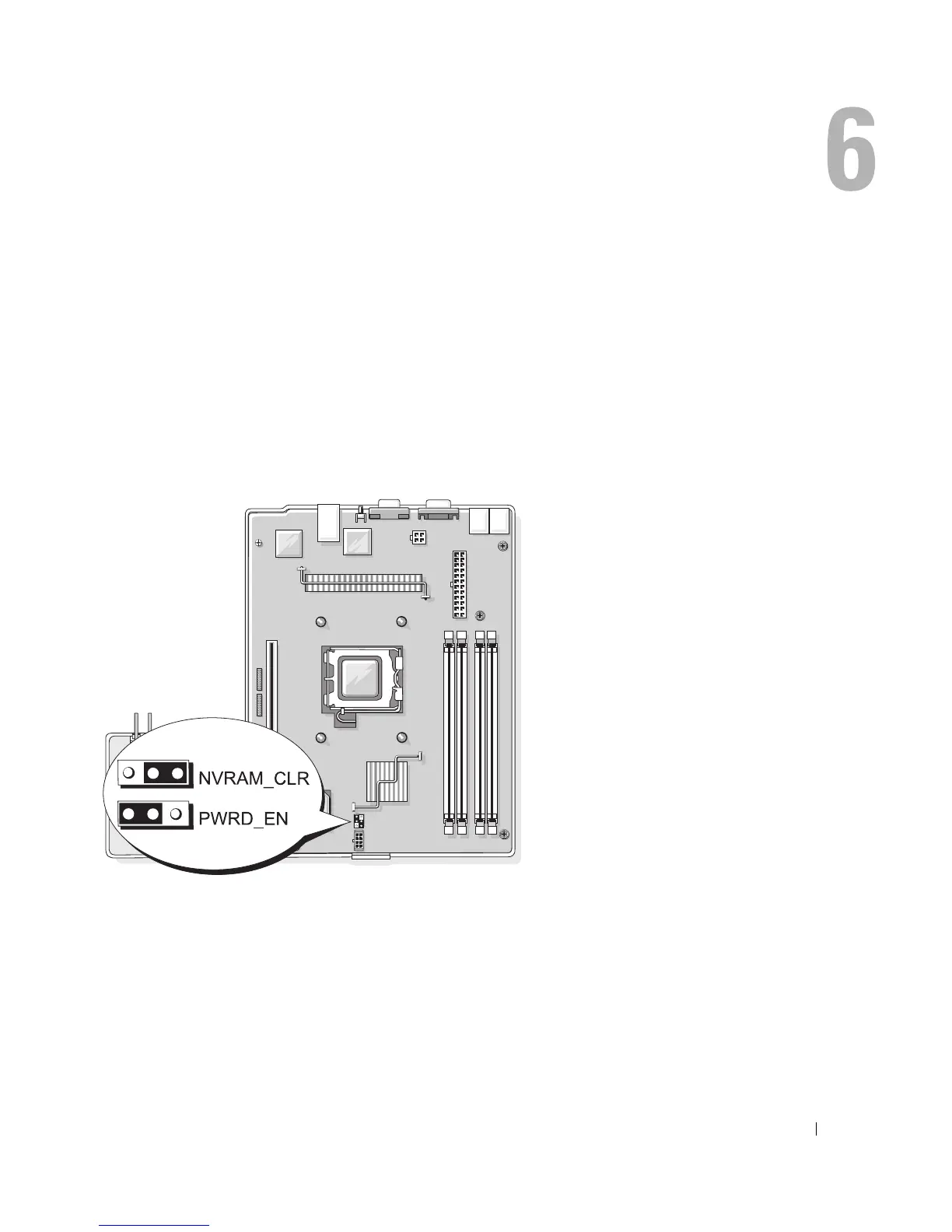

Figure 6-1. System Board Jumpers
