System Board Connectors

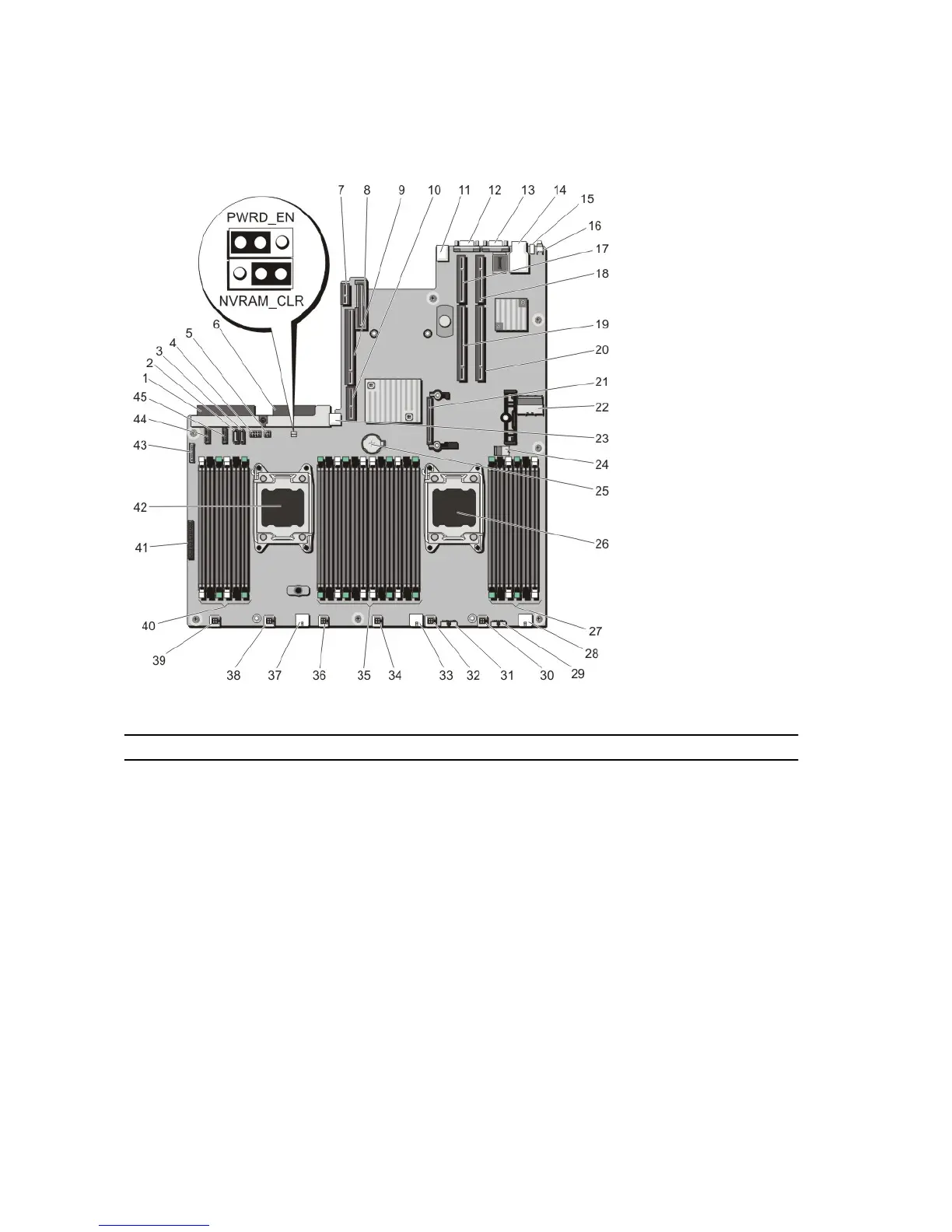

Figure 75. System Board Jumpers and Connectors
Item Connector Description
1 J_PS2 PSU 2 power connector
2 J_SATA_CD Optical drive SATA connector
3 J_SATA_TBU Tape backup unit SATA connector
4 J_BP0 Optical drive power connector
5 J_TBU Tape backup unit power connector
6 J_PS1 PSU 1 power connector
7 J_IDSDM Internal dual SD module connector
8 J_NDC Network daughter card connector
9 J_RISER_3A Riser 3 connector
10 J_RISER_3B Riser 3 connector
