Dell PowerEdge R720xd - NIC Indicator Codes

Item Indicator, Button, or
Connector
Icon Description
NOTE: The port is available for use only if the iDRAC7
Enterprise license is installed on your system.
4 PCIe expansion card slots
low–profile (3)
Allows you to connect up to three PCI Express expansion
cards.
5 Serial connector Allows you to connect a serial device to the system.
6 Video connector Allows you to connect a VGA display to the system.
7 USB connectors (2) Allows you to connect USB devices to the system. The
ports are USB 2.0-compliant.
8 Ethernet connectors Four integrated 10/100/1000 Mbps NIC connectors
or
Four integrated connectors that include:
• Two 10/100/1000 Mbps NIC connectors
• Two 100 Mbps/1 Gbps/10 Gbps SFP+/10 GbE T
connectors
9 PCIe expansion card slots
full height (4) (PowerEdge
R720)
Allows you to connect up to four full-height PCI Express
expansion cards.
PCIe expansion card slots
full height (3) (PowerEdge
R720xd)
Allows you to connect up to three full-height PCI Express
expansion cards.
10 Power supply (PSU1)
AC 495 W, 750 W, or 1100 W
or
DC 750 W, or 1100 W
11 Power supply (PSU2)
12 Hard drives (2) (back) Up to two hot-swappable 2.5 inch hard drives.
13 vFlash media card slot Allows you to insert a vFlash media card.

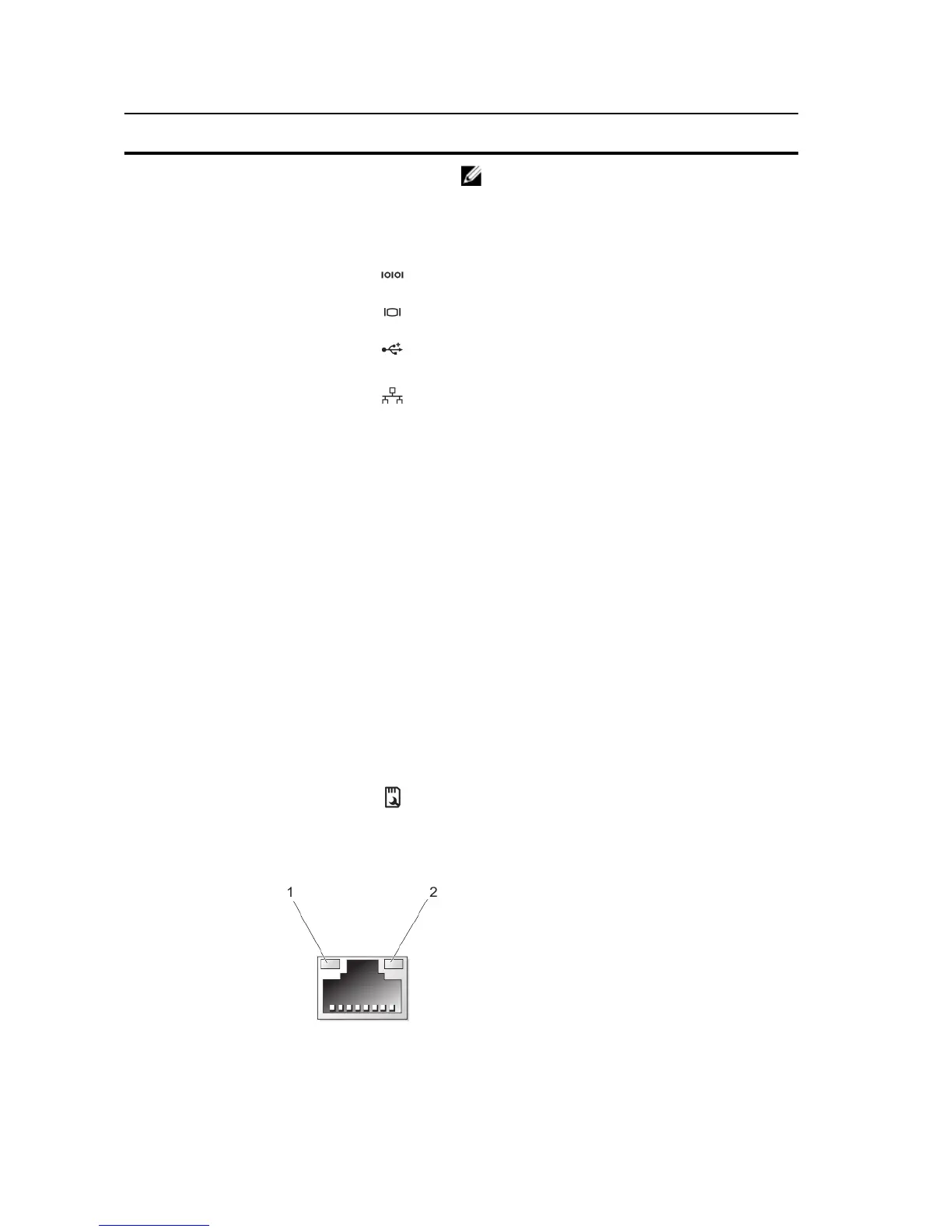

NIC Indicator Codes
Figure 9. NIC Indicator
18
