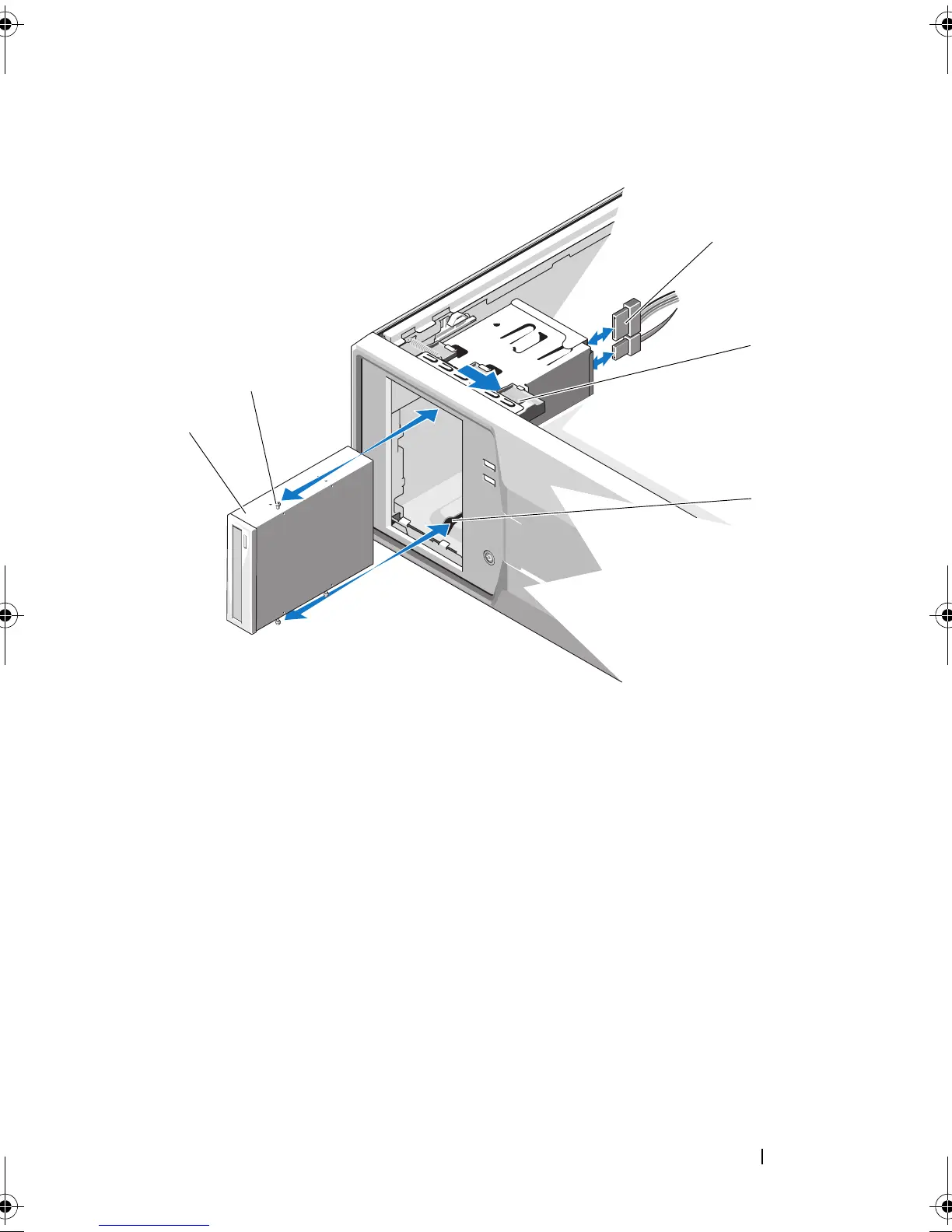

Figure 3-7. Removing and Installing an Optical Drive (SATA Connection)
7
If you are installing another drive in the bay, see "Installing an Optical or
Tape Drive" on page 66.
8
If the drive is being permanently removed, install an insert on the front
bezel. See "Installing Front Bezel Insert" on page 61.
9
Replace the front bezel. See "Installing the Front Bezel" on page 60.
10
Close the system. See "Closing the System" on page 58.
1 power/data cable 2 drive release latch
3 drive bay screw slots 4 optical drive
5 optical drive shoulder screws (3)
