12. SAS B cable on 3.5 inch backplane
13. SAS A cable on 3.5 inch backplane
14. backplane power cable
15. backplane power connector
16. PCIe SSD backplane signal cable
17. PCIe D cable on PCIe SSD backplane
18. PCIe C cable on PCIe SSD backplane

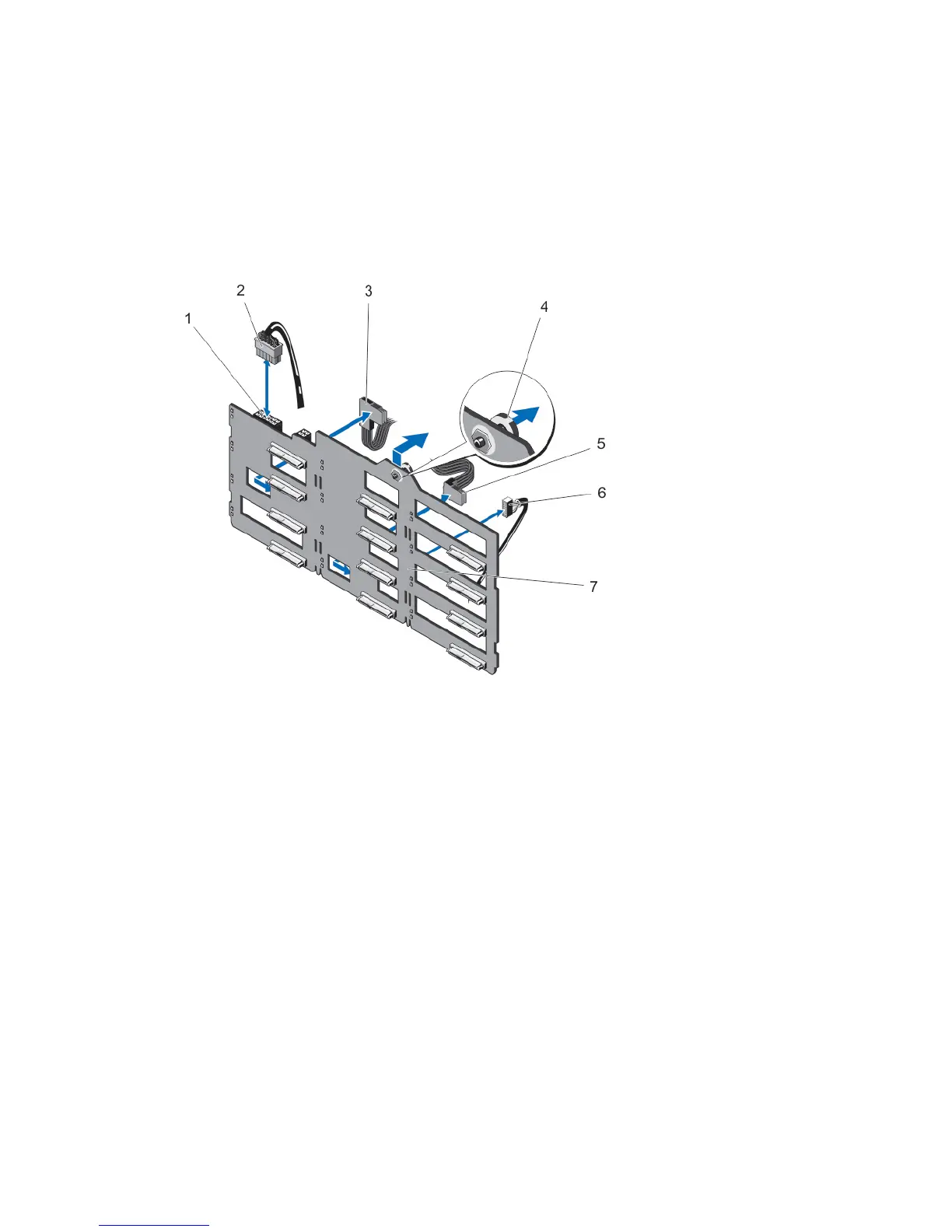

Figure 44. Removing and Installing a 3.5 Inch (x12) SAS/SATA Backplane
1. power connector
2. power cable
3. SAS B cable
4. release pin
5. SAS A cable
6. signal cable
7. backplane
