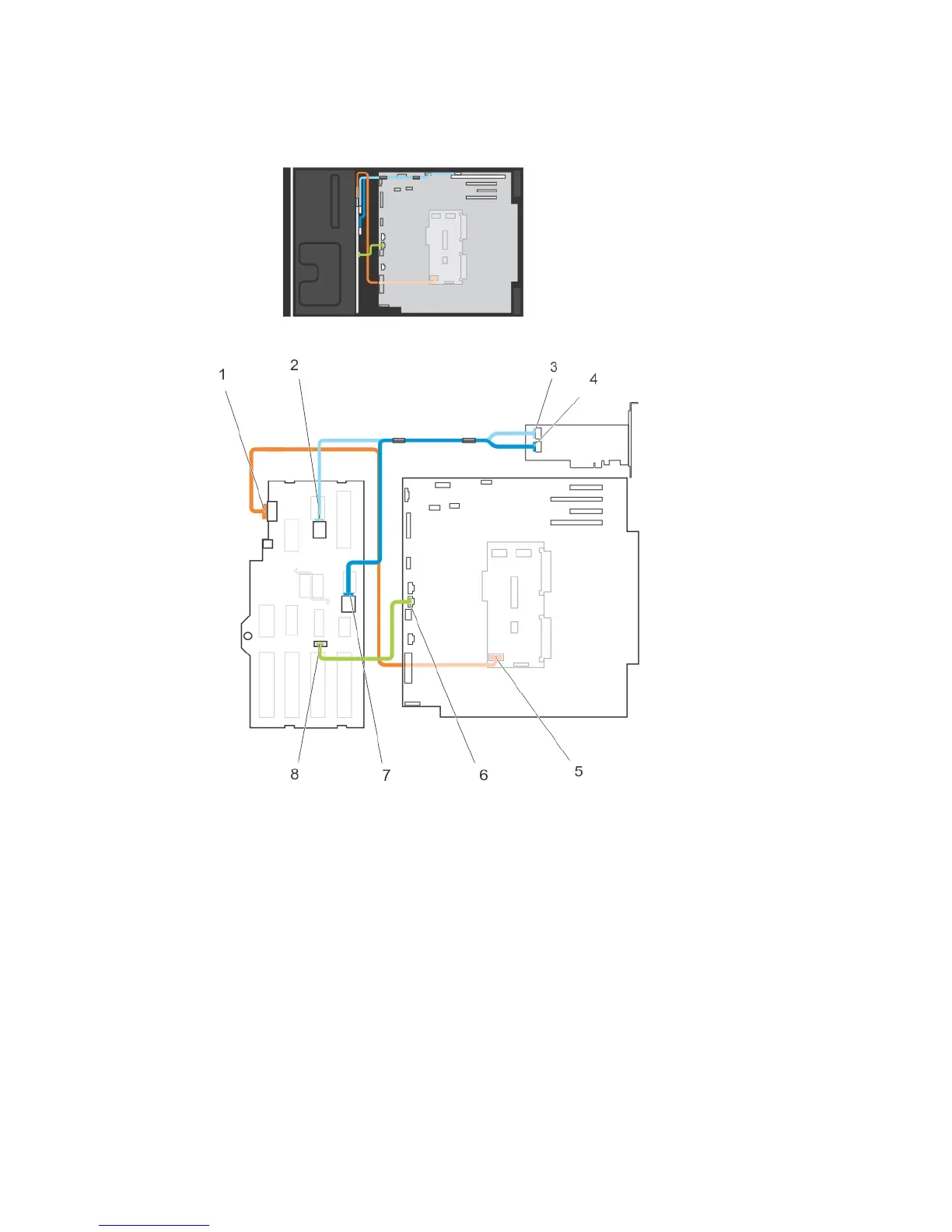

Figure 45. Cabling—3.5 Inch (x12) SAS/SATA Backplane
1. power connector on backplane
2. SAS B connector on backplane
3. SAS B connector on PERC
4. SAS A connector on PERC
5. power connector on PIB
6. signal connector on system board
7. SAS A connector on backplane
8. signal connector on backplane
91
