Dell PowerEdge T620 - Page 92

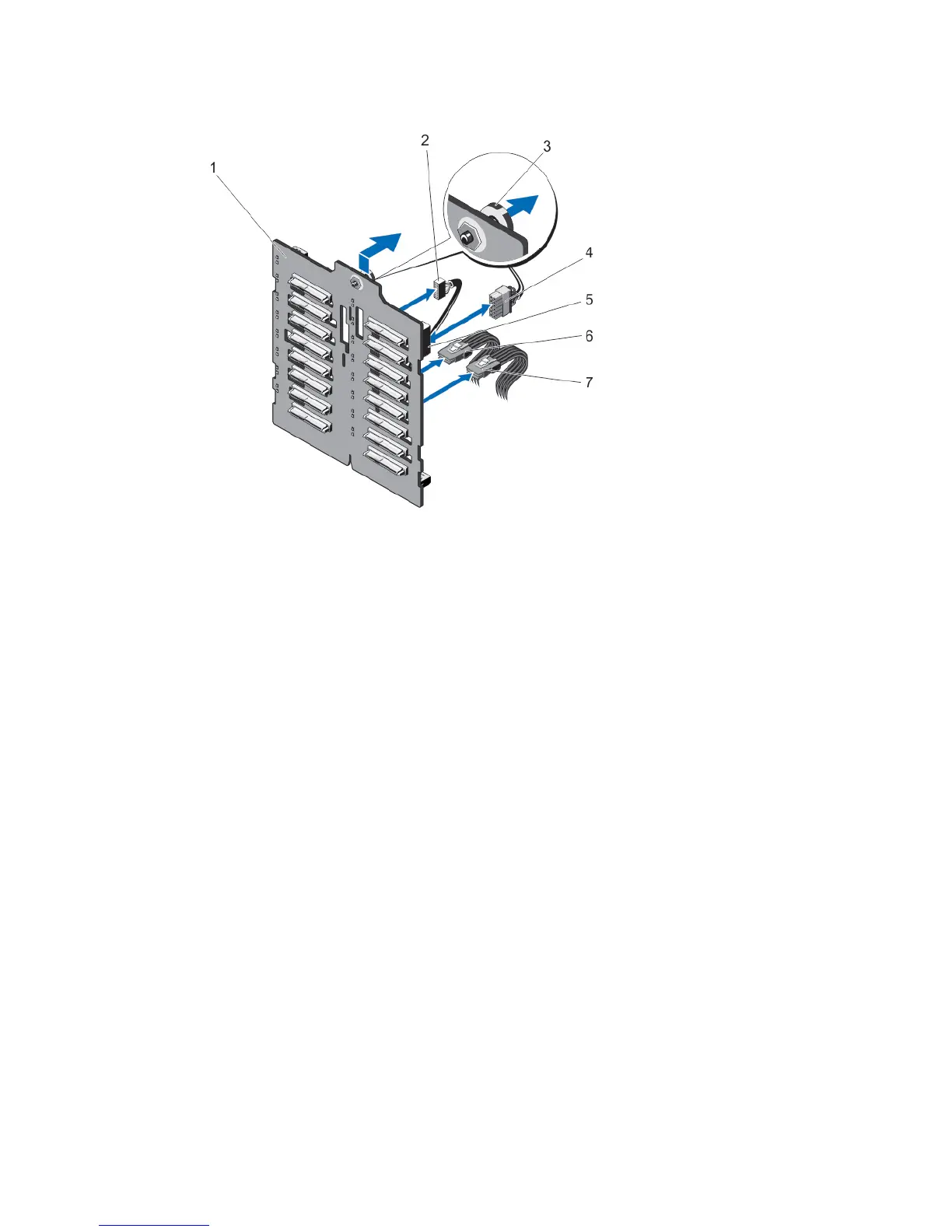

Figure 46. Removing and Installing 2.5 Inch (x16) SAS/SATA Backplane
1. backplane
2. signal cable
3. release pin
4. power cable
5. power connector
6. SAS A cable
7. SAS B cable
