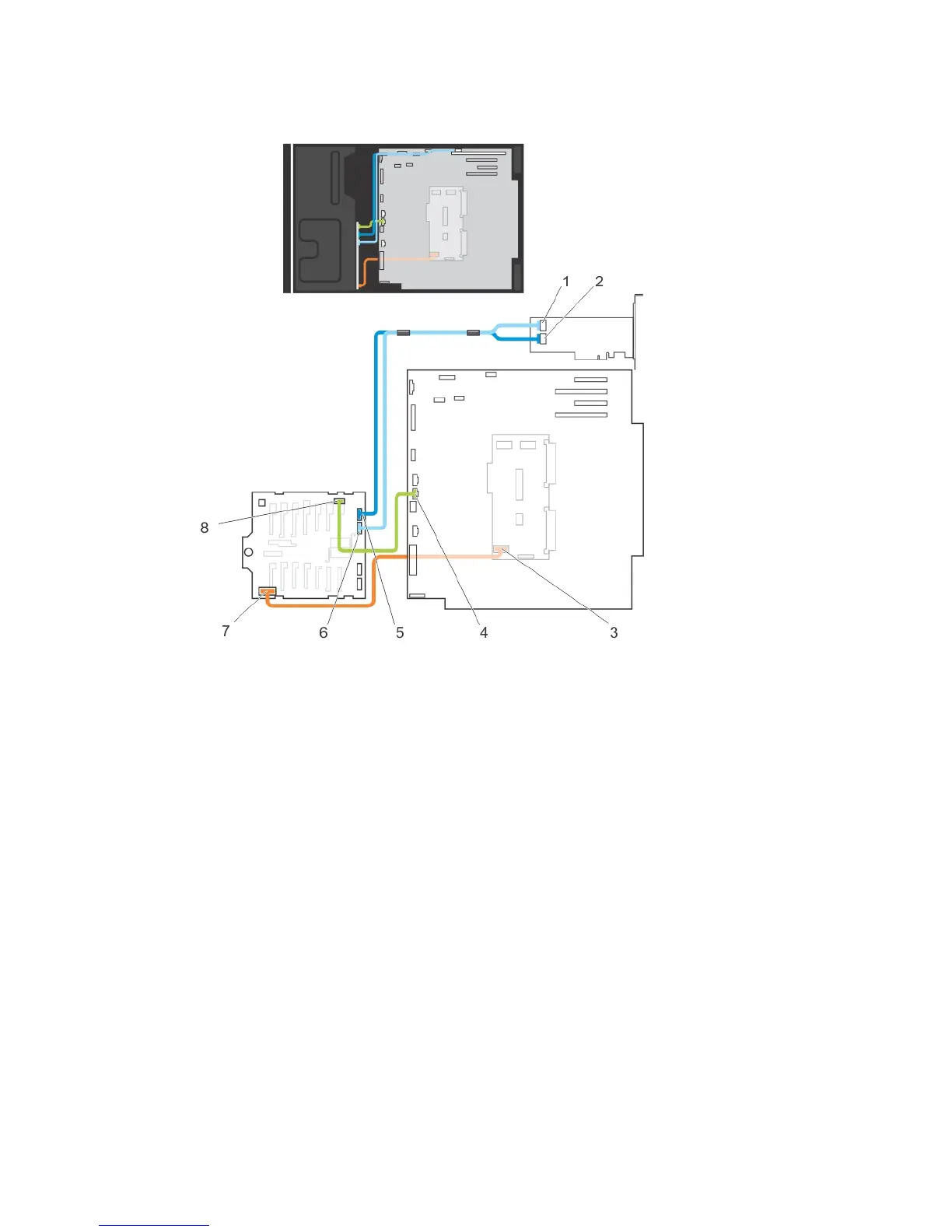

Figure 47. Cabling—2.5 Inch (x16) SAS/SATA Backplane
1. SAS B connector on PERC
2. SAS A connector on PERC
3. power connector on PIB
4. signal connector on system board
5. SAS A connector on backplane
6. SAS B connector on backplane
7. power connector on backplane
8. signal connector on backplane
93
