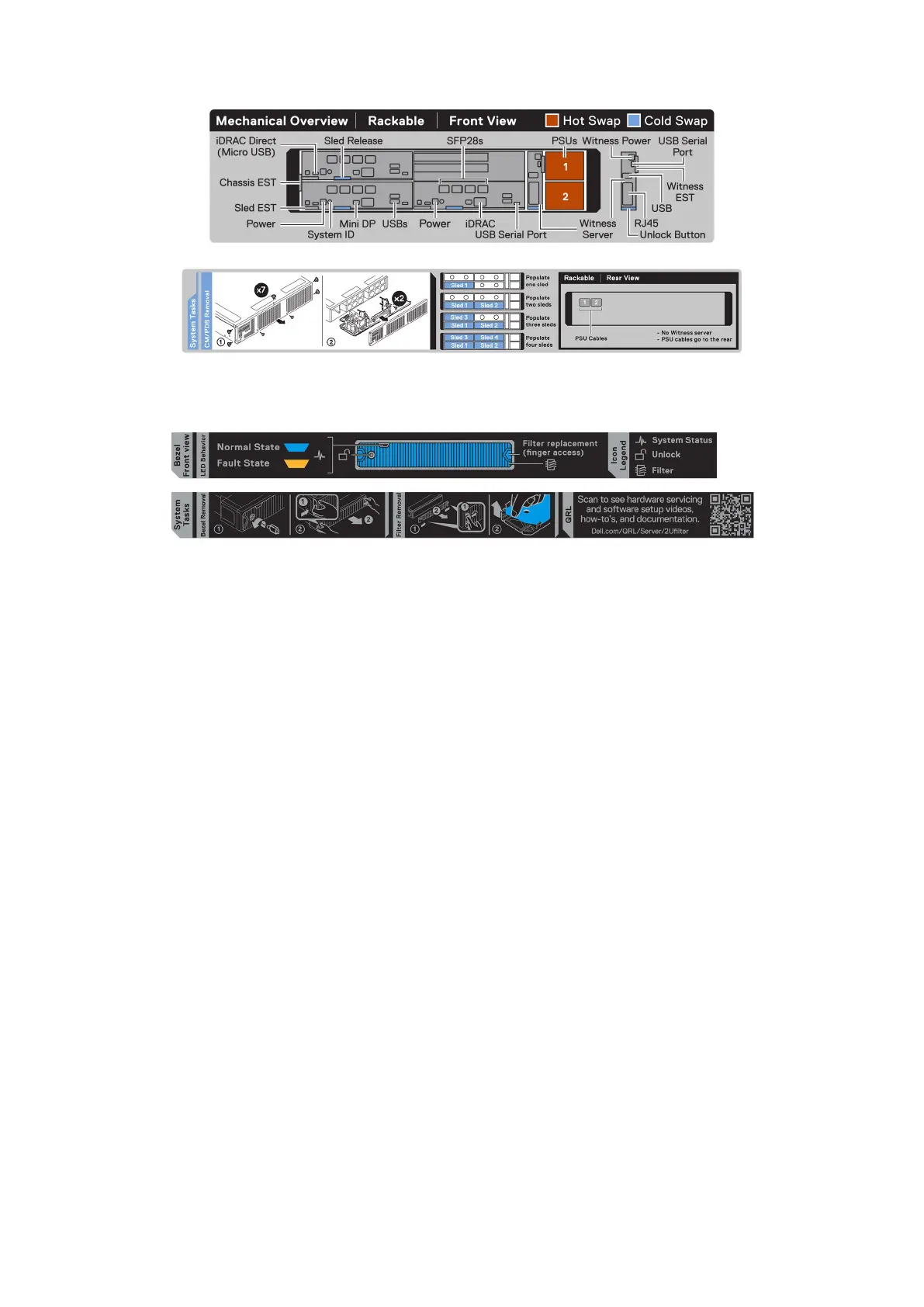

Figure 7. System tasks,
Figure 8. Bezel tasks
Rail sizing and rack compatibility matrix
For specific information about the rail solutions compatible with your system, see the Dell Enterprise Systems Rail
Sizing and Rack Compatibility Matrix available at https://i.dell.com/sites/csdocuments/Business_solutions_engineering-
Docs_Documents/en/rail-rack-matrix.pdf.
The document provides the information that is listed below:
● Specific details about rail types and their functionalities.
● Rail adjustability range for various types of rack mounting flanges.
● Rail depth with and without cable management accessories.
● Types of racks supported for various types of rack mounting flanges.
Dell PowerEdge XR4000r system configurations and features
11
