Dell PowerVault MD3060e Deployment Guide

Single Server 4 HBA up to 4 enclosures High Availability Configuration

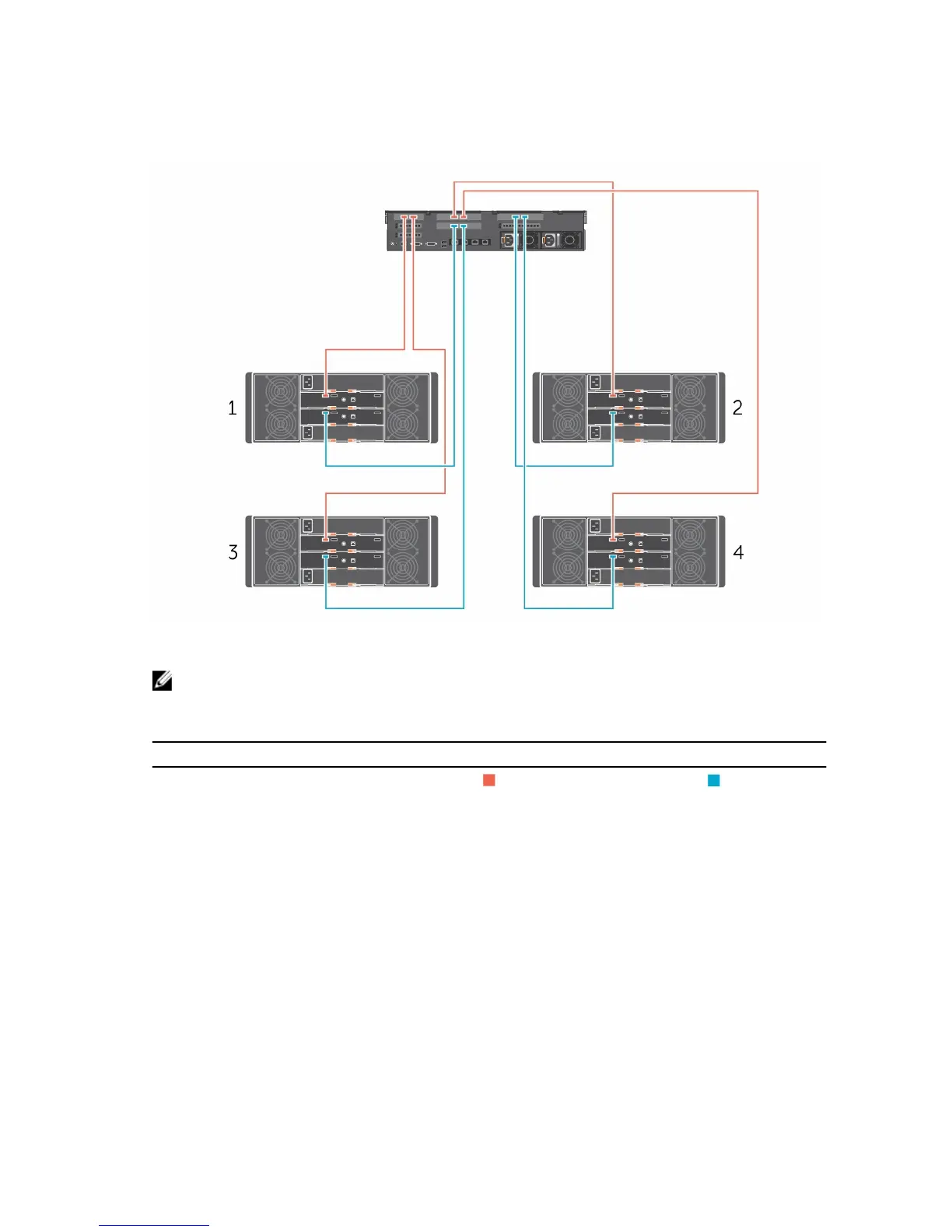

Figure 5. Single Server 4 HBA up to 4 enclosures High Availability Cabling Diagram
NOTE: For more details on Dell servers that support 2 or more HBA’s please see the Dell PowerVault
MD3060 Support Matrix at dell.com/powervaultmanuals.
Table 2. Single Server 4 up to 4 enclosures HBA High Availability Cabling Table
Host Server 1
Cable Color Coding
Enclosure 1 HBA 0-EMM 0 Port 0 HBA 2-EMM 1 Port 0
Enclosure 2 HBA 1-EMM 0 Port 0 HBA 3-EMM 1 Port 0
Enclosure 3 HBA 0-EMM 0 Port 0 HBA 2-EMM 1 Port 0
Enclosure 4 HBA 1-EMM 0 Port 0 HBA 3-EMM 1 Port 0
12
