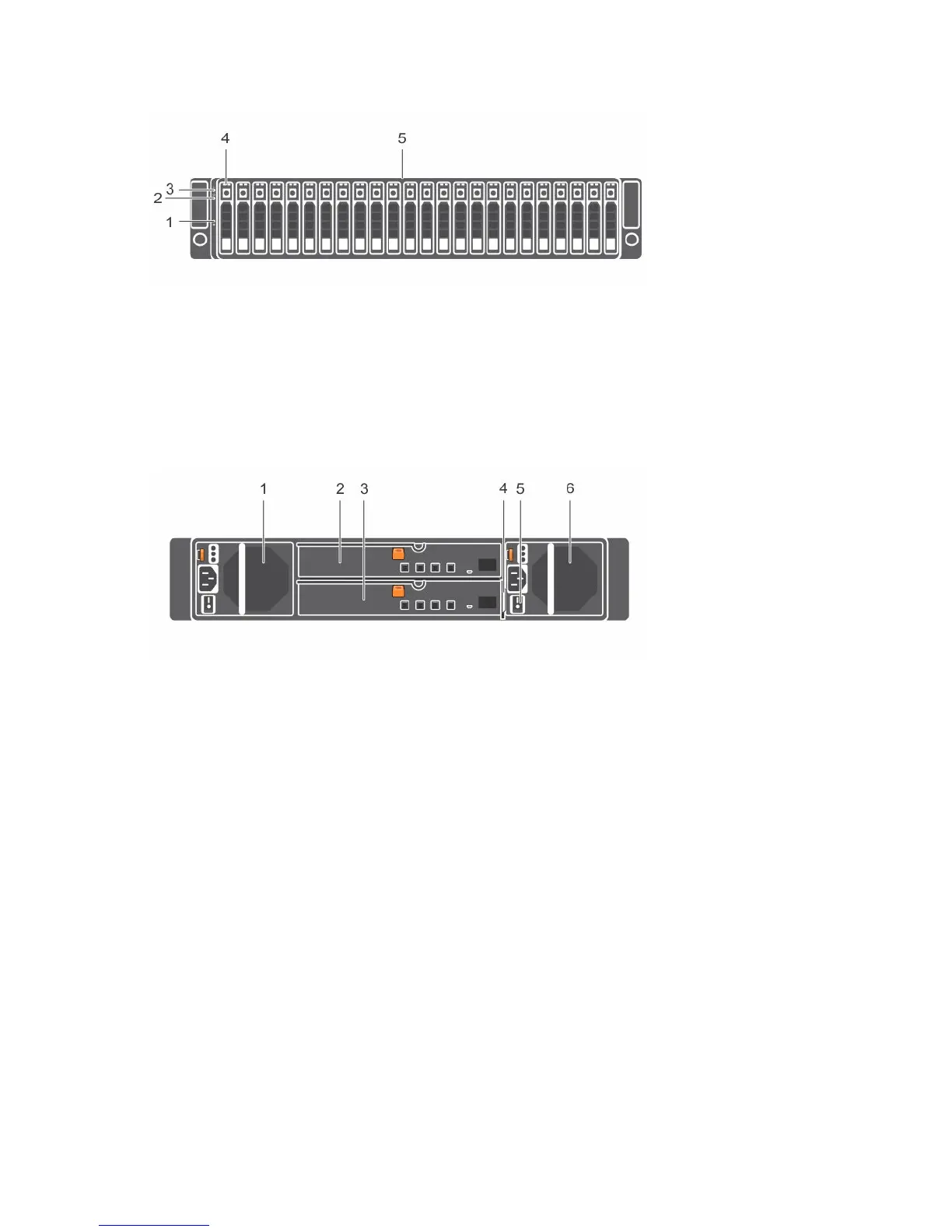

Figure 4. Front panel features and Indicators—Dell Storage MD1420
1. system identification button (blue) 2. power LED
3. enclosure status LED (blue and amber) 4. hard disk drives
5. enclosure (Drawer 0)
Back-panel features and indicators
Figure 5. Back-panel features and indicators
1. PSU or cooling fan module (PS1) 2. primary enclosure management module
(EMM 0)
3. secondary EMM (EMM 1) 4. information tag
5. power switches (2) 6. PSU or cooling fan module (PS2)
Server Hardware Manager installation
MPIO (Multipath I/O)
You must configure Windows MPIO for the SHM software to recognize the hardware. For more
information about MPIO configuration procedures, see the Dell Storage with Microsoft Storage Spaces
Best Practices available at Dell.com/dsmsmanuals.
10
