Dell Precision 5770 Connection Guide

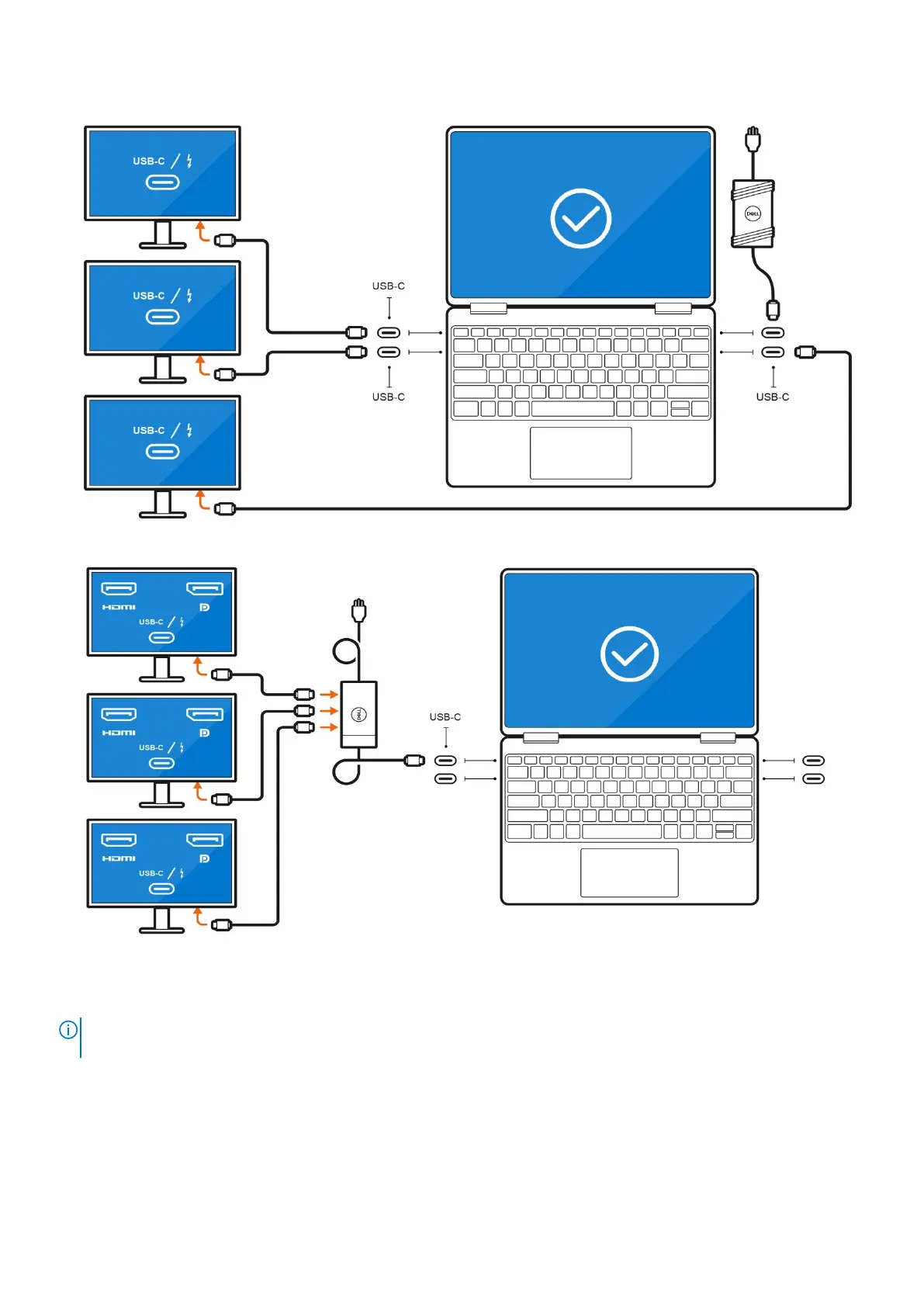

● Connect up to three external displays using direct USB-C or Thunderbolt cables:
● Connect up to three external displays using a USB-C docking station:
With the internal display turned off
NOTE:
Ensure that you turn off the computer's internal display before connecting the external displays. For more
information, see Turn off the internal display .
You can connect up to four external displays directly to Thunderbolt 4 (USB-C) ports.
Connect external displays
9

Dell Precision 5770 Specifications

General

Processor	12th Gen Intel Core i7-12700H
Graphics	NVIDIA RTX A2000, A3000
Display	17.0-inch UHD+ (3840 x 2400)
Memory	Up to 64GB DDR5
Storage	Up to 4TB PCIe NVMe SSD
Ports	1x SD card reader
Battery	6-Cell 97WHr Integrated
Operating System	Windows 11 Pro
Wireless	Intel Wi-Fi 6E AX211, Bluetooth 5.2
Camera	720p HD
Audio	Stereo speakers with MaxxAudio Pro
Dimensions	374.48 mm
